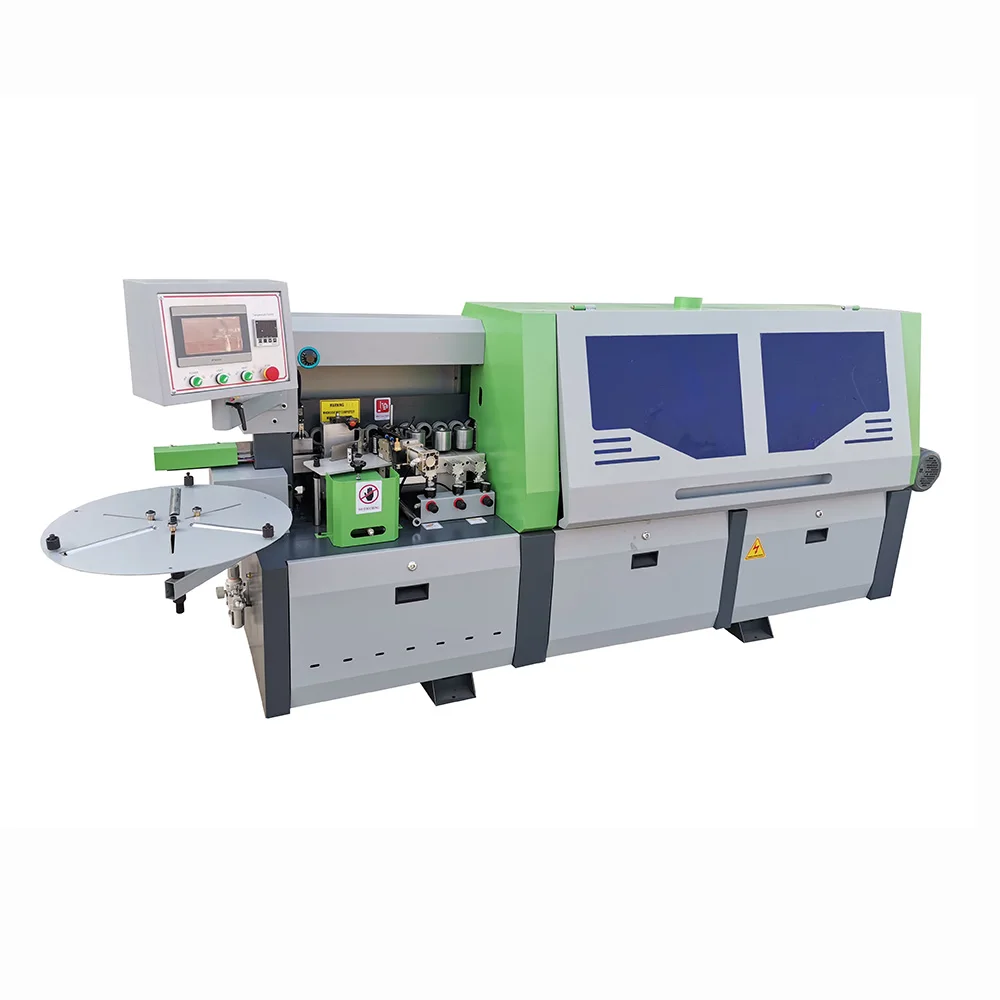

Pvc Mdf Edge Bander Automatic Line Edge Cutter Machines Pre Milling Wood Gluing Edge Banding Machine for Furniture Cabinets
Pvc Mdf Edge Bander Automatic Line Edge Cutter Machines Pre Milling Wood Gluing Edge Banding Machine for Furniture Cabinets
ISO 9001 CE Certified OEM / ODM Ready 5 National Patents Ruiqi
Wood Based Panels Machinery

Pvc Mdf Edge Bander Automatic Line Edge Cutter Machines Pre Milling Wood Gluing Edge Banding Machine for Furniture Cabinets

Product Parameters ModelZDS280DThe main functionGluing. End trimming. Fine trimming. Scraping. BuffingWorking pressure0.6MpaPanel thickness10-60mmEdge thickness0.4-3mmConveyor belt speed16m/minMin. panel width60mmMin. panel length150mmVoltage380V-3HPPower7.5kwWeight700kgDimensions3100*700*1400mmOur ServiceWe can provide you with various custom services Products Disply 1. The machine body adopts 14mm national standard high-strength steel plate table. frame-type fuselage structure. which is durable and not easy to deform after high-temperature […]

CE Certified
OEM / ODM
High Precision
100+ Countries
Request a Quote WhatsApp Now
woodmachinebc@aliyun.com Reply within 24 hours

Product Parameters
Model
ZDS280D
The main function
Gluing. End trimming. Fine trimming. Scraping. Buffing
Working pressure
0.6Mpa
Panel thickness
10-60mm
Edge thickness
0.4-3mm
Conveyor belt speed
16m/min
Min. panel width
60mm
Min. panel length
150mm
Voltage
380V-3HP
Power
7.5kw
Weight
700kg
Dimensions
3100*700*1400mm
Our Service
We can provide you with various custom services
Products Disply
1. The machine body adopts 14mm national standard high-strength steel plate table. frame-type fuselage structure. which is durable and not easy to deform after high-temperature quenching treatment.2. The guide rail of the conveyor belt is made of HT260 material. and the conveying speed is stable.3. The conveying motor adopts a customized Taiwan brand. with stable power output. and the thermal protection system improves the safety factor.4. All high-speed motors are well-known and reliable brands. which are efficient and stable.5. The head guide rail adopts Taiwan brand. which is stable. durable and has high precision.6. Pneumatic system. German Festo or Taiwan AirTAC brand cylinder and safety valve. high-sensitivity AirTAC magnetic switch!7. Electrical appliances and operating systems: Delixi/Chint: air switches. contactors. Japanese Omron travel switches.
Product details
Control Panel
Gluing and pressing device
Fine trimming & Scraping & Buffing
End trimming
Company Profile
ABOUT US
Zhengzhou The Right Time Import And Export Co.. Ltd. designated procurement channels for China Construction Overseas Projects. and is mainly involved in woodworking machinery. construction machinery. machinery accessories. engineering materials and other products. We invest and hold a portable woodworking company in Shandong province and a C N C machinery company in Lunjiao. Foshan City.Combining advanced woodworking production technology and experience at home and abroad. in order to better serve woodworking machinery and support the woodworking industry. we have successively developed. designed and manufactured various type of portable and sliding table saws. the whole house customization straight and curved edge bander. trimming machine. C N C nesting machine. C N C wood router. C N C six-sided drilling and milling processing center. C N C side holes drilling machine. industrial automatic edge banding machine. hinge hole drilling machine. panel saws and other woodworking best-selling products. The products are exported to Europe. America. Southeast Asia. Kazakhstan. Vietnam. India. Brazil. Peru. and other regions and countries.In line with the company philosophy of customer first and pursuit of excellence. the company has brought together a team of technical experts specializing in machine tool design and manufacturing and an import and export service team with more than ten years of rich experience. with good professional quality. We can provide customers with good pre-sale and after-sale technical advice and import and export one-stop service.
Package And Shipping
FAQ
Q1: How to make an order?
A1:You can order online . Or Email us your details. and we will contact you immediately and help you proceed with the orders.

Q2: Can you offer special discounts to the wholesaler or we make big quantity?
A2:Yes. we will give you best support according to your quantity.

Q3: What is your delivery time?
A3:Normally. we can finish one order at about 25-30days. but the exact time depends on different styles and different quantities you order.

Q4: Can you arrange the shipment by door to door?
A4:We can offer door to door service both by sea and by air. which can save your time and money. Also. we have cooperated forwarder in some countries and can arrange the customs clearance for you.

Q5: Do I have to assemble all items by myself or by my customer himself?
A5:Our packing will be two different ways according to different products. Some are used the KD packing (for some little spare parts). and others need to be assembled. But it is so easy to assemble with the user manual or video teaching.

Q6: What's your warranty?
A6:We normally will provide one years warranties. If the product is caused by factory mistakes. We will give you replacement for the spare parts. If it was damaged during the shipping or other reasons. we will provide the best solutions for you.

Q7:What payment do you accept?
A7:Normally we can provide TT. LC. PAYPAL. ESCROW. WESTERN UNION ect. Any other ideas. please contact us for better support.

20+
Years Experience
100+
Countries Exported
800+
Factory Staff
$10M
Annual Turnover
Get a Free Quote

Interested in Pvc Mdf Edge Bander Automatic Line Edge Cutter Machines Pre Milling Wood Gluing Edge Banding Machine for Furniture Cabinets?

Fill in your requirements and our team will respond within 24 hours with detailed specifications and competitive pricing.

Sending your inquiry...

By submitting, you agree to be contacted by our sales team. We respect your privacy and never share your data.

Myra (EN)
woodmachinebc@aliyun.com
WhatsApp (EN)
+86 152 6691 4509
WhatsApp (ES)
+86 185 6023 3698

Related Products

Explore more machines from our product range

Wood Based Panels Machinery

XZF450 Woodworking Bevel and Straight Edge Banding Machine 45 Degree Pre Milling Edge Bander Machine

30/45/60 Degree Bevel Edge90 Degree Straight Edge Product Name:ZXF-450 Fully Automatic Bevel&Straight Edge Banding MachineFunction:Gluing.End cutting.Trimming.Scraping.BuffingEdge shapeBevel&StraightVoltage380V(220V needs customize)Total Power9.5KWSpeed0-12m/minBoard thickness:0-50mmStrip thickness:0.5-3mmGlue pot capacity:4000mlDimension:300*65*135cmWeight??/DIV>430kgOur ServiceWe can provide you with various custom services Control panel Milling Shape Cutter Package And Shipping Company Profile ABOUT USZhengzhou The Right Time Import And Export Co.. Ltd. designated procurement channels […]

View Details
Wood Based Panels Machinery

Auto 985 Soft Forming Edge Banding Machine Wood MDF Melamine Edging Banding Trimming EdgeBander Gluer Edge Banding Machine Price

Products Description Soft forming edge banding machineAuto 985 soft forming edge banding machine Wood MDF Melamine Edge Banding Trimming Edge Bander Gluer Edge Banding Machine price 2024 New Wood Edging machine16 Functions Automatic Edge Veneer Banding Machine DW985 Cupboard furniture manufacturing Machine DW985 Soft forming edge banding machine is a fully automaticsemi-automatic edge banding machine […]

View Details
Wood Based Panels Machinery

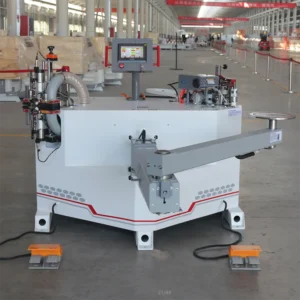

Special-Shaped Woodworking Machinery Manual Curve Round Edge Banding Machine MDF PVC Edge Banding Machine
