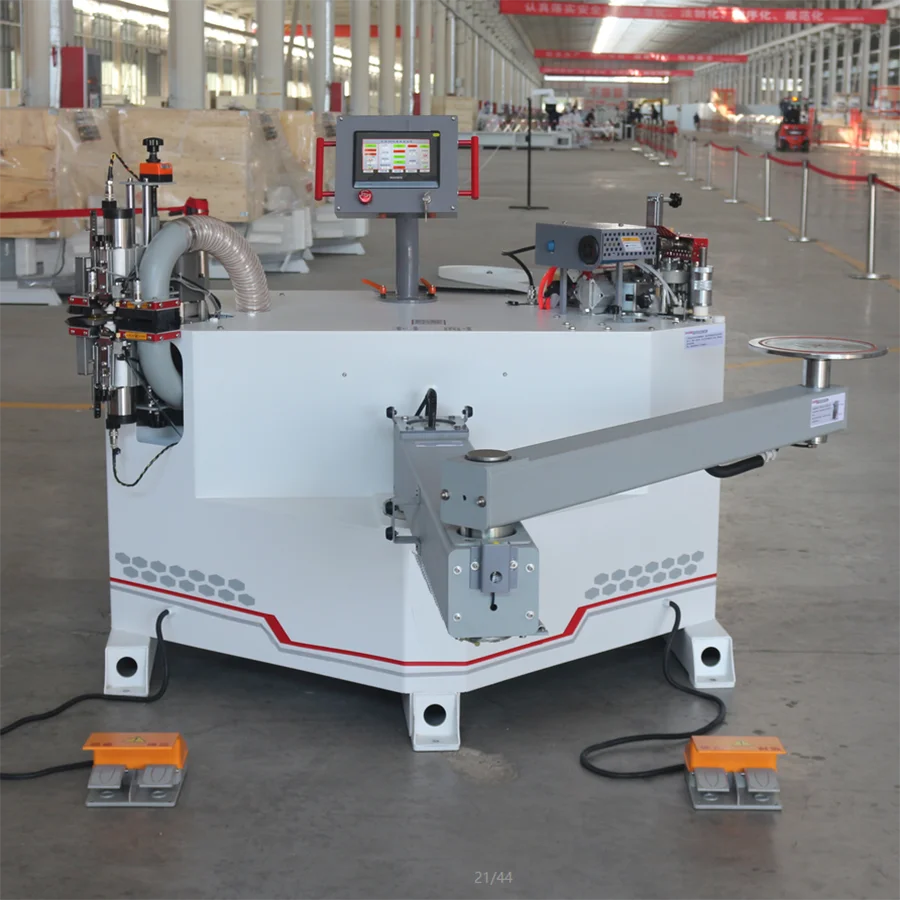

Special-Shaped Woodworking Machinery Manual Curve Round Edge Banding Machine MDF PVC Edge Banding Machine
Special-Shaped Woodworking Machinery Manual Curve Round Edge Banding Machine MDF PVC Edge Banding Machine
ISO 9001 CE Certified OEM / ODM Ready 5 National Patents Ruiqi
Wood Based Panels Machinery

Special-Shaped Woodworking Machinery Manual Curve Round Edge Banding Machine MDF PVC Edge Banding Machine

Products Disply Features of automatic curved edge banding and trimming machine:1. Curve plate automatic feeding2. Laser distance measurement. precise docking (docking error ±0.3mm). high precision. no need for manual cutting.3. Both PUR and EVA.4. Servo motor. fast action response. low noise.5. The feeding speed is 0-30cm/s. and the working efficiency is high.6. The machine has […]

CE Certified
OEM / ODM
High Precision
100+ Countries
Request a Quote WhatsApp Now
woodmachinebc@aliyun.com Reply within 24 hours

Products Disply
Features of automatic curved edge banding and trimming machine:1. Curve plate automatic feeding2. Laser distance measurement. precise docking (docking error ±0.3mm). high precision. no need for manual cutting.3. Both PUR and EVA.4. Servo motor. fast action response. low noise.5. The feeding speed is 0-30cm/s. and the working efficiency is high.6. The machine has 4 cleaning devices. which spray cleaning liquid automatically.7. The capacity of the glue pot is increased to 2600ml. and the glue pot has a heat preservation function.8. The touch screen can store 20 kinds of form data. greatly improving work efficiency.9. The 2L pressure accumulator gas storage tank is used to ensure the normal operation of all pneumatic components of the whole machine.10. 1 heating device makes the combination of strip and plate more firm.
Product Parameters
Name
automatic curved edge banding and trimming machine
Model
ZDS-700
voltage
380V/50HZ
power
6KW
Air pressure
0.6-0.8Mpa
Operating temperature of glue pot
110??210??/DIV>
Volume of air storage tank
2L
touch screen
industry IT7000
PLC
HIU-XP
frequency transformer
MD200 2.2KW
Laser displacement sensor
1030
edge banding motor
220V 400W servo motor
Trimming profiling motor
220V 60W Single-phase motor
Trimming high-speed motor
220V 400Hz 24000rpm
Thickness of strips
0.5-3mm
Width of strips
14-70mm
Length of stacking arm
2270mm
Edge banding speed
0-22m/min
Overall dimensions
1550*1440*1350mm
weight
451kg
Product details
Edge banding device
1 U-shaped groove limit
2 Adjustment switch
3 length counter
4 laser sensor
5 Glue Roller
6 Lamination pressure roller
7 Larger and thicker glue pot
8 Hot air device
9 Cutting knife assembly
Edge trimming device
1 Plate Thickness Adjustment
2 Trimming Adjustment
3 Trimming start-stop device
4 Edge scraper
5 Dust collection device
6 Curved Line Sensing Device
7 Glue removal device
High-quality LCD screen. can be rotated 50 degrees left and right. easy to operate.
Laser sensor. precise docking. fast speed. and strong anti-interference ability.
One-time molding. thickened glue pot. not easy to leak glue. and reduce the number of glue additions.
Vertical cutting knife. cutting neatly and powerfully. and the blade has a long service life.
Servo motor. small size. fast response. low noise. high efficiency.
The air pump is used for dust removal. and it can be set to clean regularly to prevent clogging.
The dust suction port is upgraded and enlarged. which can absorb dust quickly. save energy and protect the environment.
The air storage tank increases the service life of the air pump and maintains the normal air pressure required for work.
Package And Shipping
Company Profile
ABOUT US
Zhengzhou The Right Time Import And Export Co.. Ltd. designated procurement channels for China Construction Overseas Projects. and is mainly involved in woodworking machinery. construction machinery. machinery accessories. engineering materials and other products. We invest and hold a portable woodworking company in Shandong province and a C N C machinery company in Lunjiao. Foshan City.Combining advanced woodworking production technology and experience at home and abroad. in order to better serve woodworking machinery and support the woodworking industry. we have successively developed. designed and manufactured various type of portable and sliding table saws. the whole house customization straight and curved edge bander. trimming machine. C N C nesting machine. C N C wood router. C N C six-sided drilling and milling processing center. C N C side holes drilling machine. industrial automatic edge banding machine. hinge hole drilling machine. panel saws and other woodworking best-selling products. The products are exported to Europe. America. Southeast Asia. Kazakhstan. Vietnam. India. Brazil. Peru. and other regions and countries.In line with the company philosophy of customer first and pursuit of excellence. the company has brought together a team of technical experts specializing in machine tool design and manufacturing and an import and export service team with more than ten years of rich experience. with good professional quality. We can provide customers with good pre-sale and after-sale technical advice and import and export one-stop service.
FAQ
Q1: How to make an order?
A1:You can order online . Or Email us your details. and we will contact you immediately and help you proceed with the orders.

Q2: Can you offer special discounts to the wholesaler or we make big quantity?
A2:Yes. we will give you best support according to your quantity.

Q3: What is your delivery time?
A3:Normally. we can finish one order at about 25-30days. but the exact time depends on different styles and different quantities you order.

Q4: Can you arrange the shipment by door to door?
A4:We can offer door to door service both by sea and by air. which can save your time and money. Also. we have cooperated forwarder in some countries and can arrange the customs clearance for you.

Q5: Do I have to assemble all items by myself or by my customer himself?
A5:Our packing will be two different ways according to different products. Some are used the KD packing (for some little spare parts). and others need to be assembled. But it is so easy to assemble with the user manual or video teaching.

Q6: What's your warranty?
A6:We normally will provide one years warranties. If the product is caused by factory mistakes. We will give you replacement for the spare parts. If it was damaged during the shipping or other reasons. we will provide the best solutions for you.

Q7:What payment do you accept?
A7:Normally we can provide TT. LC. PAYPAL. ESCROW. WESTERN UNION ect. Any other ideas. please contact us for better support.
