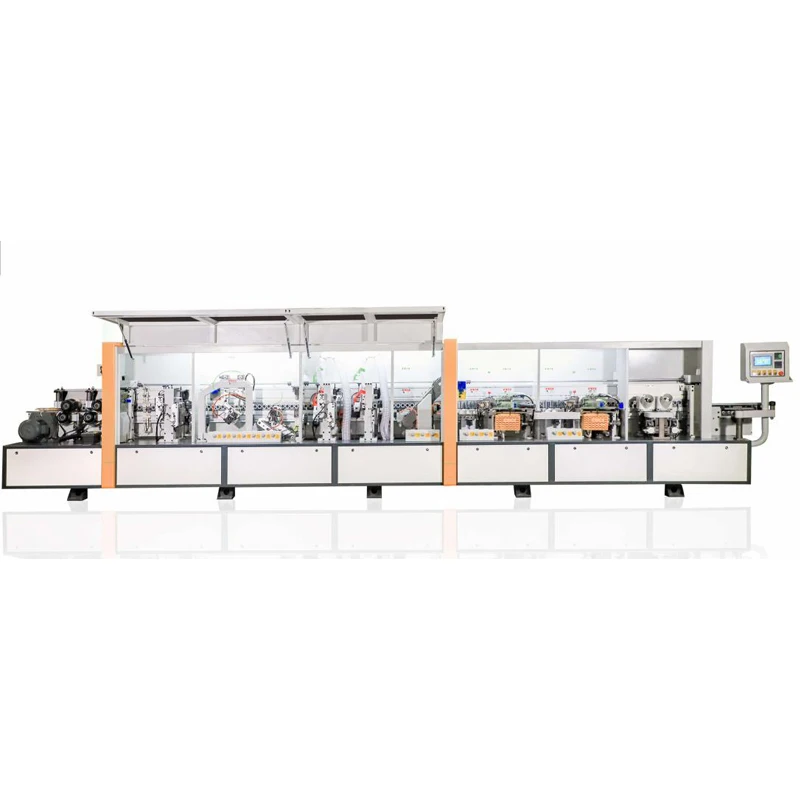

Full Automatic Linear Pur Double Trimming Abs Edge Banding Machine Gluing Pvc Mdf Kdt With Premiling
Full Automatic Linear Pur Double Trimming Abs Edge Banding Machine Gluing Pvc Mdf Kdt With Premiling
ISO 9001 CE Certified OEM / ODM Ready 5 National Patents Ruiqi
Wood Based Panels Machinery

Full Automatic Linear Pur Double Trimming Abs Edge Banding Machine Gluing Pvc Mdf Kdt With Premiling

Specification itemvaluePlace of OriginChinaConditionNewTypeedge banding machineBrand NameZDSVoltage3-HP-380 vDimension(L*W*H)800*100*160 cmPower (kW)18.5kwWeight (KG)2400kgApplicable IndustriesHome Use. Other. Factory product plywoodWarranty1 yearKey Selling PointsAutomatic double buffingVideo outgoing-inspectionProvidedWarranty of core components1 YearCore ComponentsBearing. Motor. Pump. Gear. PLC. Other. Gearbox. Pressure vessel. EngineUsageMDF ProductionNameAutomatic Edge Sealing MachineWorking pressure0.6MpaProcessed panel thickness10-60 mmEdge band thickness0.4-3 mmMin.panel300*60mm 150*150mm Products Disply Product Parameters ModelZDS-468JJThe main […]

CE Certified
OEM / ODM
High Precision
100+ Countries
Request a Quote WhatsApp Now
woodmachinebc@aliyun.com Reply within 24 hours

Specification
item
value
Place of Origin
China
Condition
New
Type
edge banding machine
Brand Name
ZDS
Voltage
3-HP-380 v
Dimension(L*W*H)
800*100*160 cm
Power (kW)
18.5kw
Weight (KG)
2400kg
Applicable Industries
Home Use. Other. Factory product plywood
Warranty
1 year
Key Selling Points
Automatic double buffing
Video outgoing-inspection
Provided
Warranty of core components
1 Year
Core Components
Bearing. Motor. Pump. Gear. PLC. Other. Gearbox. Pressure vessel. Engine
Usage
MDF Production
Name
Automatic Edge Sealing Machine
Working pressure
0.6Mpa
Processed panel thickness
10-60 mm
Edge band thickness
0.4-3 mm
Min.panel
300*60mm 150*150mm
Products Disply
Product Parameters
Model
ZDS-468JJ
The main function
Pre-milling. Gluing 1. Gluing 2. End trimming. Rough trimming. Fine trimming. Corner rounding. Scraping. Buffing 1. Buffing 2
Working pressure
0.6Mpa
Panel thickness
10-60mm
Edge thickness
0.4-3mm
Min. panel
300*60mm 150*150mm
Voltage
380V-3HP
Power
18.5kw
Weight
2300kg
Dimensions
8000*900*1600mm
Details Images
PLC control system
Excellent integrated control system. clear at a glance. easy to operate. and easy to learn
Pre-milling
Premilling unit with diamond cutters. 12000 rpm. 2×2.2 kW (3 HP). max. depth of cut 2 mm. max. workpiece height 60 mm. premilling cutters with diamond cutters width 65mm; ensures right angled and chip free workpiece edges.

Two Gluepots

Double glue pot. which can use different colors of glue to facilitate edge sealing operations of different colors
Optional PUR device

Pressing roller

6 sets of pressing roller wheels to tightly bond the edge banding strip and the plate
End trimming unit with two high frequency motors
0.37 kW .12000 rpm
Rough trimming system2 high frequency motors for upper and lower edge with 0.75 kW (1 HP); 12000 rpm. With 2pcs 6 teeth flat cutters.Edge belt thickness change by manual
Fine trimming system2 high frequency motor for upper and lower edge with 0.75 kW (1 HP); 12000 rpm. With 2pcs 6 teeth R2 cutters.Edge belt thickness change by manual.
Corner rounding
Four-motor profiling. tracking and trimming ·High-precision profiling. to ensure the perfect tactile and visual effects of work
piece processing ·Can achieve 4 different profiling effects. as well as diamond corners
Edge scrapingEdge scraping mechanism ·Remove knife marks left by trimming and finish R rounded corners ·Electro-pneumatically controlled blowing
Double Buffing unit
Upper and lower buffing unit ensures a perfect finish on the edge radius and removes any colour irregularities.

Flexible edge scraping

scrape the wave marks on the edge banding tape. more steadily

Narrow plate auxiliary device

Narrow plate edge sealing is more stable and won't deviate
Optional features

Slotting device

Grooves are made on the finished edge banding plate as needed. forming in one step to improve efficiency

Quick Sol Unit

With the upper melt system and the dual pre-melt system. the replacement is simple and convenient. The glue box is close to the pre-melt and the glue quantity control is more accurate.

About Optional Features

Edge banding machines can have different functional combinations (Pre-milling. Gluing. End trimming. Rough trimming. Fine trimming. Profiling unit . Scraping . Buffing . Grooving. Drilling). According to your needs. in addition to the basic functions. we have multiple models with combined functions. If you need other features or want to remove some features. you can contact us and we can recommend the appropriate model to you.
Package And Shipping
Company Profile
ABOUT US
Zhengzhou The Right Time Import And Export Co.. Ltd. designated procurement channels for China Construction Overseas Projects. and is mainly involved in woodworking machinery. construction machinery. machinery accessories. engineering materials and other products. We invest and hold a portable woodworking company in Shandong province and a C N C machinery company in Lunjiao. Foshan City.Combining advanced woodworking production technology and experience at home and abroad. in order to better serve woodworking machinery and support the woodworking industry. we have successively developed. designed and manufactured various type of portable and sliding table saws. the whole house customization straight and curved edge bander. trimming machine. C N C nesting machine. C N C wood router. C N C six-sided drilling and milling processing center. C N C side holes drilling machine. industrial automatic edge banding machine. hinge hole drilling machine. panel saws and other woodworking best-selling products. The products are exported to Europe. America. Southeast Asia. Kazakhstan. Vietnam. India. Brazil. Peru. and other regions and countries.In line with the company philosophy of customer first and pursuit of excellence. the company has brought together a team of technical experts specializing in machine tool design and manufacturing and an import and export service team with more than ten years of rich experience. with good professional quality. We can provide customers with good pre-sale and after-sale technical advice and import and export one-stop service.
FAQ
Q1: How to make an order?
A1:You can order online . Or Email us your details. and we will contact you immediately and help you proceed with the orders.

Q2: Can you offer special discounts to the wholesaler or we make big quantity?
A2:Yes. we will give you best support according to your quantity.

Q3: What is your delivery time?
A3:Normally. we can finish one order at about 25-30days. but the exact time depends on different styles and different quantities you order.

Q4: Can you arrange the shipment by door to door?
A4:We can offer door to door service both by sea and by air. which can save your time and money. Also. we have cooperated forwarder in some countries and can arrange the customs clearance for you.

Q5: Do I have to assemble all items by myself or by my customer himself?
A5:Our packing will be two different ways according to different products. Some are used the KD packing (for some little spare parts). and others need to be assembled. But it is so easy to assemble with the user manual or video teaching.

Q6: What's your warranty?
A6:We normally will provide one years warranties. If the product is caused by factory mistakes. We will give you replacement for the spare parts. If it was damaged during the shipping or other reasons. we will provide the best solutions for you.

Q7:What payment do you accept?
A7:Normally we can provide TT. LC. PAYPAL. ESCROW. WESTERN UNION ect. Any other ideas. please contact us for better support.

20+
Years Experience
100+
Countries Exported
800+
Factory Staff
$10M
Annual Turnover
Get a Free Quote

Interested in Full Automatic Linear Pur Double Trimming Abs Edge Banding Machine Gluing Pvc Mdf Kdt With Premiling?

Fill in your requirements and our team will respond within 24 hours with detailed specifications and competitive pricing.

Sending your inquiry...

By submitting, you agree to be contacted by our sales team. We respect your privacy and never share your data.

Myra (EN)
woodmachinebc@aliyun.com
WhatsApp (EN)
+86 152 6691 4509
WhatsApp (ES)
+86 185 6023 3698

Related Products

Explore more machines from our product range

Wood Based Panels Machinery

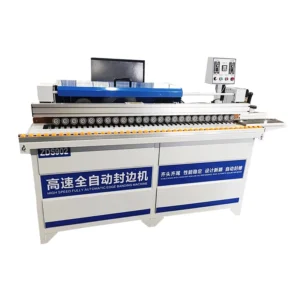

High Speed China Woodworking Small Full Automatic Pvc Portable Wood Board Pre Milling Furniture Edge Banding Machine for Sale

Product NumberHigh-speed Fully Automatic Edge Banding MachineVoltage220VEquipment Size207*60*122CMTotal Power4200WEdge Banding TypeLinear Edge Banding MachineWeight245KGEdge band height0—-35MMEdge band thickness0.5–2.5MMGlue pot capacity4000MLFunctionshigh-speed sealing and repair. double-sided gluing. independent operating platform. intelligent temperature control。Polishing andtrimming top to bottom. large capacity glue potOur ServiceWe can provide you with various custom services Integrated pressure beam. double rows of pressure wheels. […]

View Details
Wood Based Panels Machinery

Woodworking Machinery Manual Portable Edge Banding Machine for Wood Pvc MDF Small Band-sealing and Furniture Repairing Machine

Products Description Woodworking machinery manual portable edge banding machine for wood pvc MDF small band-sealing and furniture repairing machineAutomatic woodworking edge banding machine small hand-sealing and furniture repairing machine is suitable for edge sealing of MDF. particleboard. solid wood board. ecological board. plywood. etc. This machine is stable and reliable. durable. price concessions. especially suitable […]

View Details
Other Woodworking Machinery

JINAN Woodworking FX-20 Small Mini Edge Banding Machine Cabinet Furniture Edge Bander with Trimming and Polishing

Products Description JINAN Woodworking small mini edge banding machine cabinet furniture edge bander with trimming and polishingThis Multifunction edge banding machine is suitable for edge sealing of MDF. particleboard. solid wood board. ecological board. plywood. etc. This machine is stable and reliable. durable. price concessions. especially suitable for home decoration production. Product Paramenters ModelFX-20Total power2500WStandard […]

View Details
Wood Based Panels Machinery

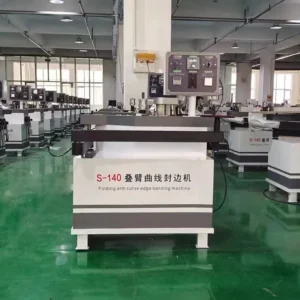

High-Speed Edge Bander China Edge Bander Double-Sided Gluing Small Mini Full-Automatic Edge Banding Machine Woodworking
