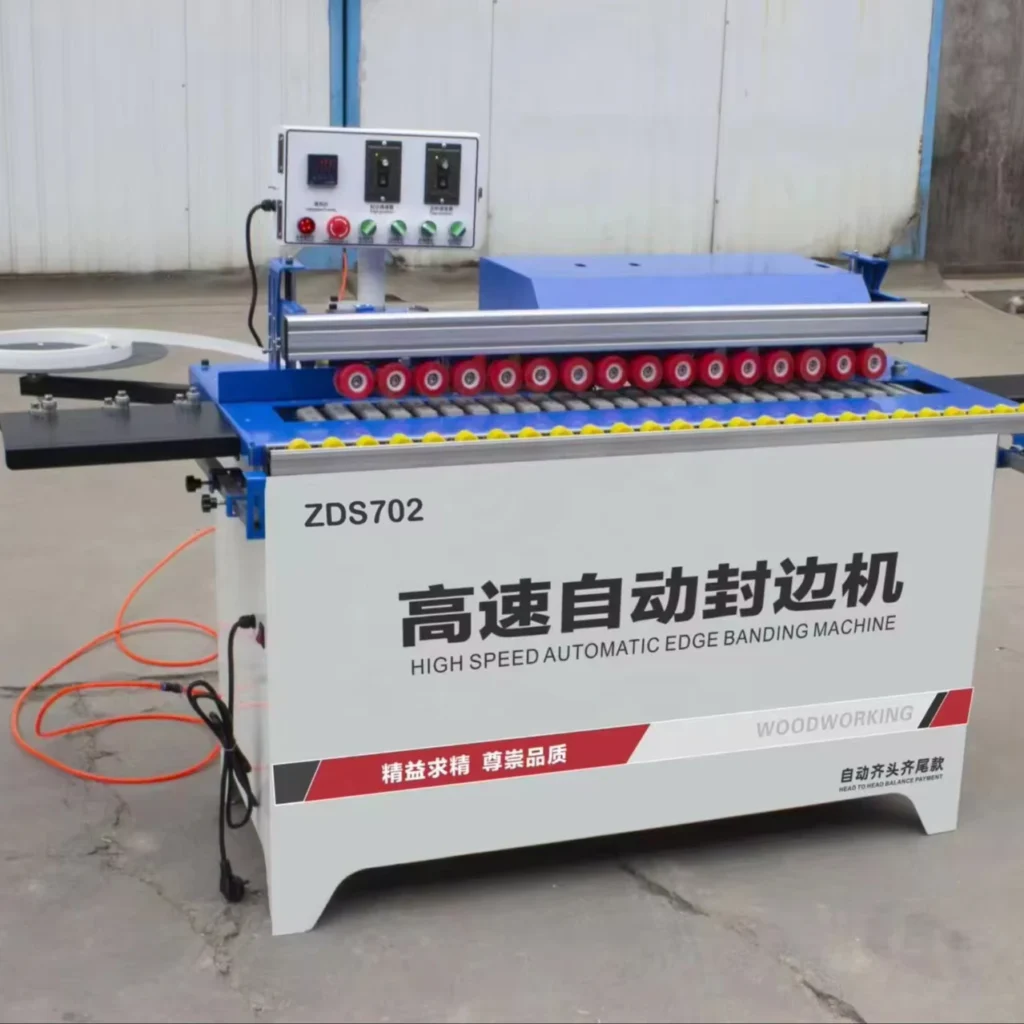

Automatic Woodworking Small PVC Edge Banding Bander Machinery for 3mm Edge Banding Gluing Wood

ISO 9001 CE Certified OEM / ODM Ready 5 National Patents Ruiqi

Automatic Woodworking Small PVC Edge Banding Bander Machinery for 3mm Edge Banding Gluing Wood

Products Disply edge banding machine with auto gluing and trimming buffing and automatic end cutting The high-speed automatic edge banding machine has the function of automatic end cutting.with its own vacuum device. clean and tidy.One-piece pressure beam. double rows of pressure wheels. silicone material conveyor belt. the sheet conveying is stable and not easy to […]

CE Certified

OEM / ODM

High Precision

100+ Countries

Request a Quote WhatsApp Now

woodmachinebc@aliyun.com Reply within 24 hours

Products Disply

edge banding machine with auto gluing and trimming buffing and automatic end cutting The high-speed automatic edge banding machine has the function of automatic end cutting.with its own vacuum device. clean and tidy.One-piece pressure beam. double rows of pressure wheels. silicone material conveyor belt. the sheet conveying is stable and not easy to scratch.It can seal multiple plates continuously. with convenient operation and high efficiency.

Product Parameters

Model	ZDS702	802
Function	automatic plate feeding. end cutting. upper and lower polishing. automatic head and tail trimming. comes with dust collector
Edge type	straight line
Rated voltage	220V/380V/customization
Trimming height	5-50mm
Rated power	3.8kw	4kw
Rated air pressure	0.4-0.6mpa	0.4-0.6mpa
Feed plate	0-10m/min	0-10m/min
Edge banding thickness	0.3-3MM
Glue capacity	1000ml	4000ml
Heating power	1000w (5-10min)	1000w (5-10min)
Overall size	12055120cm	1306575cm
Machine weight	105kg	150kg
our services	We can provide you with various custom services

Product details

Double row pressure rollerCan seal the upper and lower sides at the same timeEdge and trim at the same time to improve efficiency

Precision scale

Adjust the pressure scale precisely as neededImprove system efficiency

Integrated pressure beam. double rows of pressure wheels. silicone material conveyor belt.

Hand crank wheel integrated pressure adjustmentConvenient

Company Profile

_{ABOUT US}

Zhengzhou The Right Time Import And Export Co.. Ltd. designated procurement channels for China Construction Overseas Projects. and is mainly involved in woodworking machinery. construction machinery. machinery accessories. engineering materials and other products. We invest and hold a portable woodworking company in Shandong province and a C N C machinery company in Lunjiao. Foshan City.Combining advanced woodworking production technology and experience at home and abroad. in order to better serve woodworking machinery and support the woodworking industry. we have successively developed. designed and manufactured various type of portable and sliding table saws. the whole house customization straight and curved edge bander. trimming machine. C N C nesting machine. C N C wood router. C N C six-sided drilling and milling processing center. C N C side holes drilling machine. industrial automatic edge banding machine. hinge hole drilling machine. panel saws and other woodworking best-selling products. The products are exported to Europe. America. Southeast Asia. Kazakhstan. Vietnam. India. Brazil. Peru. and other regions and countries.In line with the company philosophy of customer first and pursuit of excellence. the company has brought together a team of technical experts specializing in machine tool design and manufacturing and an import and export service team with more than ten years of rich experience. with good professional quality. We can provide customers with good pre-sale and after-sale technical advice and import and export one-stop service.

Package And Shipping

FAQ

Q1: How to make an order?

A1:You can order online . Or Email us your details. and we will contact you immediately and help you proceed with the orders.

Q2: Can you offer special discounts to the wholesaler or we make big quantity?

A2:Yes. we will give you best support according to your quantity.

Q3: What is your delivery time?

A3:Normally. we can finish one order at about 25-30days. but the exact time depends on different styles and different quantities you order.

Q4: Can you arrange the shipment by door to door?

A4:We can offer door to door service both by sea and by air. which can save your time and money. Also. we have cooperated forwarder in some countries and can arrange the customs clearance for you.

Q5: Do I have to assemble all items by myself or by my customer himself?

A5:Our packing will be two different ways according to different products. Some are used the KD packing (for some little spare parts). and others need to be assembled. But it is so easy to assemble with the user manual or video teaching.

Q6: What's your warranty?

A6:We normally will provide one years warranties. If the product is caused by factory mistakes. We will give you replacement for the spare parts. If it was damaged during the shipping or other reasons. we will provide the best solutions for you.

Q7:What payment do you accept?
A7:Normally we can provide TT. LC. PAYPAL. ESCROW. WESTERN UNION ect. Any other ideas. please contact us for better support.

Technical Specifications

Standard specifications -- custom configurations available on request.

Parameter	Value
Voltage	220V/380V/415V (customizable)
Certification	CE, ISO9001
Brand	Ruiqi / OEM Available
Origin	Ningjin, Shandong, China
Warranty	12 months
After-Sales	Remote support, video guidance, spare parts
MOQ	1 unit
Lead Time	15-30 days (subject to order quantity)
Payment	T/T, L/C, Western Union
Packaging	Export standard wooden case
Shipping	FOB Qingdao / Tianjin

* Specifications may vary by model. Contact us for exact parameters of your required model.
