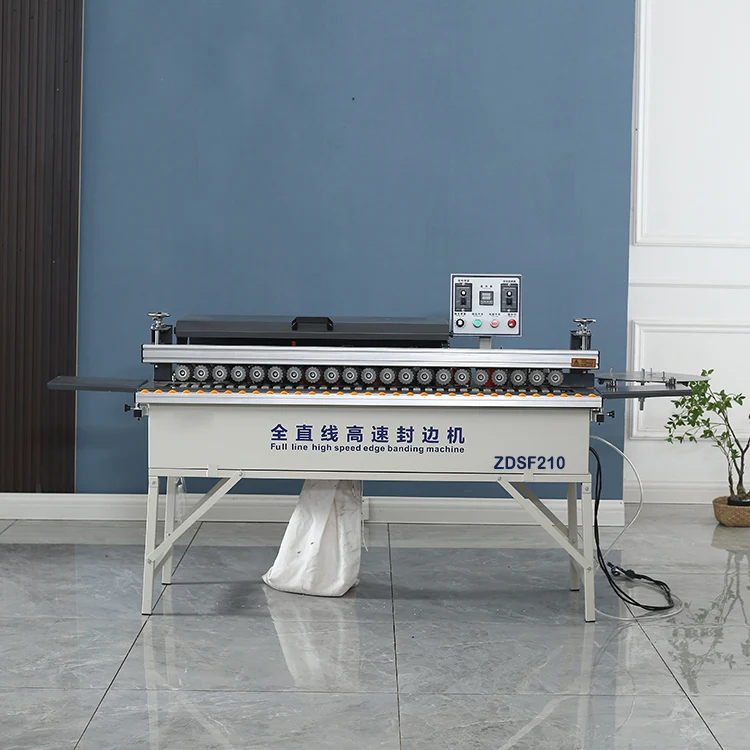

ZDSF210 High Speed Woodworking Automatic Portable Edge Bander Furniture Cabinet Wood Board MDF PVC Edge Banding Machine Price
ZDSF210 High Speed Woodworking Automatic Portable Edge Bander Furniture Cabinet Wood Board MDF PVC Edge Banding Machine Price
ISO 9001 CE Certified OEM / ODM Ready 5 National Patents Ruiqi
Wood Based Panels Machinery

ZDSF210 High Speed Woodworking Automatic Portable Edge Bander Furniture Cabinet Wood Board MDF PVC Edge Banding Machine Price

Products Disply Miniature Fully Automatic Straight Line Edge Banding Machine1. It adopts an integrated all-aluminum pressure beam. a rotating hand crank design. and precise scales on both sides for easy adjustment.2. Double rows of inner inclined pressure rollers. the grip plate is stable and does not deviate.3. Frame structure. strong track. good stability.4. Trimming device. […]

CE Certified
OEM / ODM
High Precision
100+ Countries
Request a Quote WhatsApp Now
woodmachinebc@aliyun.com Reply within 24 hours

Products Disply
Miniature Fully Automatic Straight Line Edge Banding Machine
1. It adopts an integrated all-aluminum pressure beam. a rotating hand crank design. and precise scales on both sides for easy adjustment.2. Double rows of inner inclined pressure rollers. the grip plate is stable and does not deviate.3. Frame structure. strong track. good stability.4. Trimming device. dual high-speed motors adopt precision guide rail sliders to lift up and down. parallel up and down. four-edged 1.5 alloy trimming knife. profiling trimming.5. Profile scraping for smoother edges.6. Clean up and down the board to remove excess glue lines.7. Large diameter closed dust collector. good dust collection effect.This edge banding machine can seal large boards and small boards. and the boards can be fed continuously and stably.
Product Paramenters
Model
ZDS210
Function
Automatic plate feeding
Double-sided gluing
Upper and lower polishing
Automatic trimming
Wood cleaning system up and down
Edge type
straight lines
Voltage
220v50hz
Rated power
4kw
Rated air pressure
0.4-0.6mpa
Suction
1200w
Belt power
25w
Transmission power
120w
Heating power
800w
Polishing power
180w*2
Trimming power
800w*2
Conveyer belt
0-14m/min
Feed plate
0-14m/min
Sheet thickness
10-50mm
Strip thickness
0.5-2.5mm
Glue capacity
1000ml
Overall size
2100*570*1120mm
Packing size
157*60*69cm
Weight
140kg
Product details
Control panel. multi-function button operation. save worry and effort.
The aluminum alloy pressure beam can be adjusted. and the plate conveying is more stable.
The elastic pressing device makes the bonding between the edge band and the board more firm.
Pneumatically controlled edge strip cutting device makes work easier.
2 high-speed trimming motors. combined with a large-diameter vacuum device. trims the edges beautifully and cleanly.
Plate up and down cleaning device + edge scraping device.
Glue roller. adjustable glue volume.
Push-type limit switch. precise control.
Extended feed plate. more convenient to use.
4-edge arc-shaped alloy cutter head. the arc-shaped trimming is more beautiful.
Polishing device. cross polishing up and down.
Comes with a tray for edge banding.
