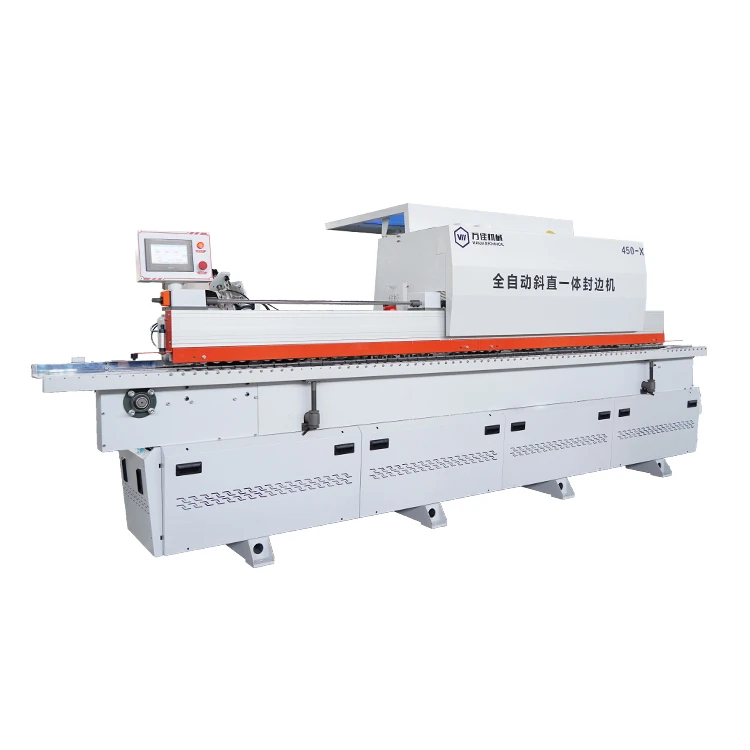

Woodworking Pre-Milling Gluing Pvc Mdf Automatic Curve Slanted Edge Banding Machine Corner Trimming
Woodworking Pre-Milling Gluing Pvc Mdf Automatic Curve Slanted Edge Banding Machine Corner Trimming
ISO 9001 CE Certified OEM / ODM Ready 5 National Patents Ruiqi
Wood Based Panels Machinery

Woodworking Pre-Milling Gluing Pvc Mdf Automatic Curve Slanted Edge Banding Machine Corner Trimming

Products Disply Product Paramenters Product size435x92x165cmTotal power 17.5KwPower supply voltage380V/three-phase five-wire 50HzConveying motor 380V22Kw (frequency converter)Air source pressure 0.6mpa-0.8mpaLifting motor380V025Kw (inverter)External suction portdiameter 100mmPolishing motor380V370W (2)Touch screenXinjie industrial touch screenSelection motorA 380V 4kwInverterXinjie Industrial InverterMilling motor B380V35KwGlue pot use temperature150-170??/DIV>Edge strip width28mmThe thickness of the edge banding1.2mm (related to the material of the edge banding)Air storage tank volume5LTrimming […]

CE Certified
OEM / ODM
High Precision
100+ Countries
Request a Quote WhatsApp Now
woodmachinebc@aliyun.com Reply within 24 hours

Products Disply
Product Paramenters
Product size
435x92x165cm
Total power
 17.5Kw
Power supply voltage
380V/three-phase five-wire 50Hz
Conveying motor
 380V22Kw (frequency converter)
Air source pressure
 0.6mpa-0.8mpa
Lifting motor
380V025Kw (inverter)
External suction port
diameter 100mm
Polishing motor
380V370W (2)
Touch screen
Xinjie industrial touch screen
Selection motor
A 380V 4kw
Inverter
Xinjie Industrial Inverter
Milling motor B
380V35Kw
Glue pot use temperature
150-170??/DIV>
Edge strip width
28mm
The thickness of the edge banding
1.2mm (related to the material of the edge banding)
Air storage tank volume
5L
Trimming motor
380V0.75Kwx2
Qi head motor
380V0.37Kwx2
Sheet width
>100mm
Sheet length
>250mm
Type of edge banding
PVC
Glue pot heating
1.2KW
Heat gun
2KW
Edge motor
380V0.18KW (inverter)
Polishing motor
380V0.37KWX2
Slotted motor
220V0.8KW
Edge banding sheet thickness
18/22/25MM
Edge speed
 0-12M/MIN (variable speed) (inclined straight edge)
Edge strip width
20-50MM
Glue pot capacity
2000ML
Company Profile
ABOUT US
Zhengzhou The Right Time Import And Export Co.. Ltd. designated procurement channels for China Construction Overseas Projects. and is mainly involved in woodworking machinery. construction machinery. machinery accessories. engineering materials and other products. We invest and hold a portable woodworking company in Shandong province and a C N C machinery company in Lunjiao. Foshan City.Combining advanced woodworking production technology and experience at home and abroad. in order to better serve woodworking machinery and support the woodworking industry. we have successively developed. designed and manufactured various type of portable and sliding table saws. the whole house customization straight and curved edge bander. trimming machine. C N C nesting machine. C N C wood router. C N C six-sided drilling and milling processing center. C N C side holes drilling machine. industrial automatic edge banding machine. hinge hole drilling machine. panel saws and other woodworking best-selling products. The products are exported to Europe. America. Southeast Asia. Kazakhstan. Vietnam. India. Brazil. Peru. and other regions and countries.In line with the company philosophy of customer first and pursuit of excellence. the company has brought together a team of technical experts specializing in machine tool design and manufacturing and an import and export service team with more than ten years of rich experience. with good professional quality. We can provide customers with good pre-sale and after-sale technical advice and import and export one-stop service.
Package And Shipping
FAQ
Q1: How to make an order?
A1:You can order online . Or Email us your details. and we will contact you immediately and help you proceed with the orders.

Q2: Can you offer special discounts to the wholesaler or we make big quantity?
A2:Yes. we will give you best support according to your quantity.

Q3: What is your delivery time?
A3:Normally. we can finish one order at about 25-30days. but the exact time depends on different styles and different quantities you order.

Q4: Can you arrange the shipment by door to door?
A4:We can offer door to door service both by sea and by air. which can save your time and money. Also. we have cooperated forwarder in some countries and can arrange the customs clearance for you.

Q5: Do I have to assemble all items by myself or by my customer himself?
A5:Our packing will be two different ways according to different products. Some are used the KD packing (for some little spare parts). and others need to be assembled. But it is so easy to assemble with the user manual or video teaching.

Q6: What's your warranty?
A6:We normally will provide one years warranties. If the product is caused by factory mistakes. We will give you replacement for the spare parts. If it was damaged during the shipping or other reasons. we will provide the best solutions for you.

Q7:What payment do you accept?
A7:Normally we can provide TT. LC. PAYPAL. ESCROW. WESTERN UNION ect. Any other ideas. please contact us for better support.
