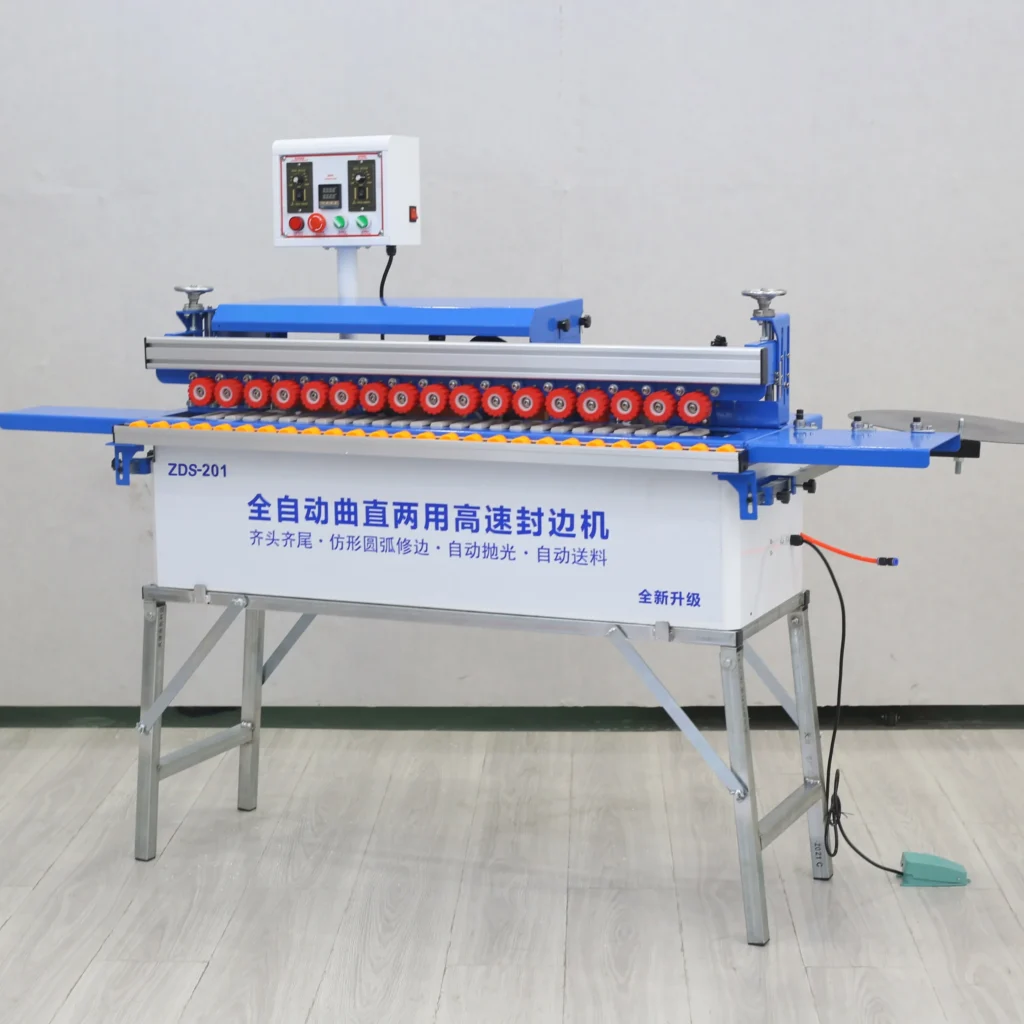

Small Mini Portable Curved Pvc Woodworking Edge Banding Machine
Small Mini Portable Curved Pvc Woodworking Edge Banding Machine
ISO 9001 CE Certified OEM / ODM Ready 5 National Patents Ruiqi
Wood Based Panels Machinery

Small Mini Portable Curved Pvc Woodworking Edge Banding Machine

Products Disply Fully automatic straight and curved high-speed edge banding machineThe use of square slide rail realizes profiling and trimming. and the use of imported brand 4-blade alloy arc knife to trim the plate effect arc shape. automatic end cutting. use two big diameter dust collectors. close fit. collecting effect can reach 99%. For crawler […]

CE Certified
OEM / ODM
High Precision
100+ Countries
Request a Quote WhatsApp Now
woodmachinebc@aliyun.com Reply within 24 hours

Products Disply
Fully automatic straight and curved high-speed edge banding machine
The use of square slide rail realizes profiling and trimming. and the use of imported brand 4-blade alloy arc knife to trim the plate effect arc shape. automatic end cutting. use two big diameter dust collectors. close fit. collecting effect can reach 99%. For crawler transmission. we use steel rod slide rails. which is more stable in delivery. and the real materials can be seen!

Product Paramenters
Heating power
1.2kw
Edge banding speed
0-26cm/s
Edge banding thickness
0.3-3mm
Total power
3KW
Panel thickness
8-50mm
Feeding speed
0-15m/min
Dimension(L*W*H)
1200*450*750
transport power
180w
Weight
 85kg
Function
Automatic Trimming Aand Buffing.Curved And Straight EdgeBanding
Product details
Control panel. multi-function button operation. save worry and effort.
The aluminum alloy pressure beam can be adjusted. and the plate conveying is more stable.
It can be used for straight edge banding. and can be used for curved edge banding after rotating 180 degrees. which is powerful.
Pneumatically controlled edge strip cutting device makes work easier.
4-edge arc-shaped alloy cutter head. the arc-shaped trimming is more beautiful.
Polishing device. cross polishing up and down.
Comes with a tray for edge banding.
