Multi-Functional Small Automatic PVC Edge Bander Portable Edge Banding Machine for Wood Furniture
Multi-Functional Small Automatic PVC Edge Bander Portable Edge Banding Machine for Wood Furniture
ISO 9001 CE Certified OEM / ODM Ready 5 National Patents Ruiqi
Other Woodworking Machinery

Multi-Functional Small Automatic PVC Edge Bander Portable Edge Banding Machine for Wood Furniture

Product Description ZDSF910H Fully Automatic Edge Banding Machine ZDSF910H fully automatic edge banding machine has the function of automatic head and tail. and comes with a vacuum cleaner. The use of square slide rail realizes profiling and trimming. and the use of imported brand 4-blade alloy arc knife to trim the plate effect arc shape. […]

CE Certified
OEM / ODM
High Precision
100+ Countries
Request a Quote WhatsApp Now
woodmachinebc@aliyun.com Reply within 24 hours

Product Description

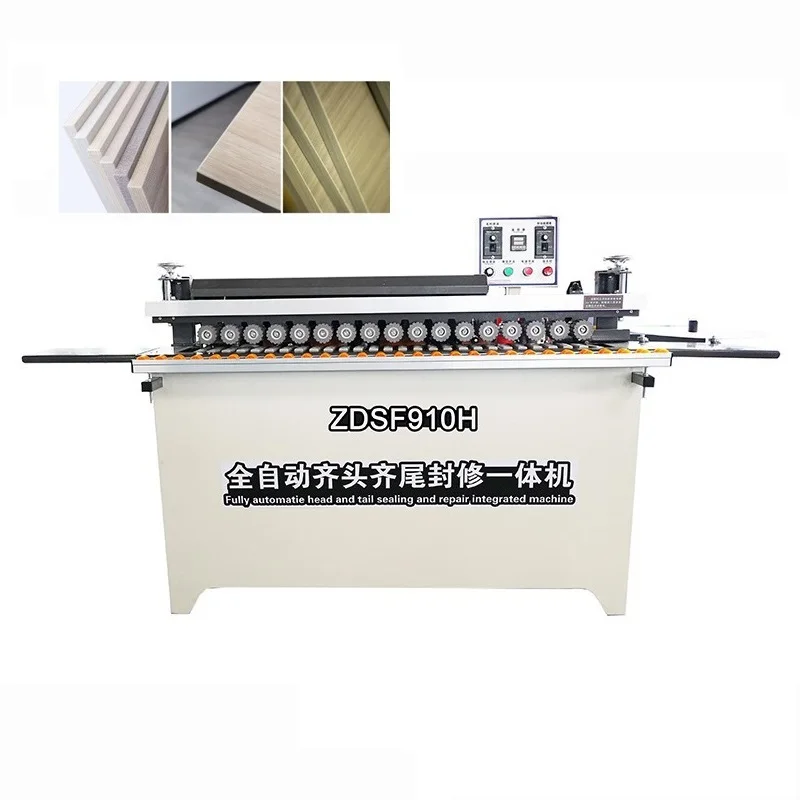

ZDSF910H Fully Automatic Edge Banding Machine
ZDSF910H fully automatic edge banding machine has the function of automatic head and tail. and comes with a vacuum cleaner. The use of square slide rail realizes profiling and trimming. and the use of imported brand 4-blade alloy arc knife to trim the plate effect arc shape. automatic end cutting. use two big diameter dust collectors. close fit. collecting effect can reach 99%. For crawler transmission. we use steel rod slide rails. which is more stable in delivery. and the real materials can be seen!Minimum board width for edge sealing 2.5cm.
Banding Effect
Features: 1. Automatic board feeding 2. Double-sided gluing 3. Up and down trimming and polishing 4. Automatic end trimming 5. Fully automatic edge banding
6. Full-envelope vacuuming. collecting effect can reach 99%
7. Use steel rod slide rails. more stable in delivery
8. Minimum board width for edge sealing 2.5 cm
9. With cleaning glue line function
Specification
Model
ZDSF910H Fully Automatic Edge Banding Machine

Function
Automatic plate feeding. Double-sided gluing. End cutting. Upper and lower polishing. Automatic head and tail trimming. Comes with
dust collector. Min edge sealing 2.5 cm
Voltage
220v50hz
Rated power
4kw
Rated air pressure
0.4-0.6mpa
Suction
1200w
Belt power
25w
Transmission power
120w
Heating power
800w
Polishing power
180w*2
Trimming power
800w*2
Sheet thickness
10-50mm
Strip thickness
0.5-2.5mm
Glue capacity
1000ml
Overall size
1300*560*1090mm
Packing size
138*58*120cm
Weight
185kg
Details Images

Control panel. multi-function button operation. save worry and effort.

The aluminum alloy pressure beam can be adjusted. and the plate conveying is more stable.

Can be used for edge banding. which is powerful.

Pneumatically controlled edge strip cutting device makes work easier.

Double-row rubber pressure wheels. automatic plate feeding. large-size plates can also be transported stably.
2 high-speed trimming motors. combined with a large-diameter vacuum device. trims the edges beautifully and cleanly.
Recommend Products
Packing & Delivery
Company Profile

ABOUT US

Zhengzhou The Right Time Import And Export Co.. Ltd. designated procurement channels for China Construction Overseas Projects. and is mainly involved in woodworking machinery. construction machinery. machinery accessories. engineering materials and other products. We invest and hold a portable woodworking company in Shandong province and a CNC machinery company in Lunjiao. Foshan
City.
Combining advanced woodworking production technology and experience at home and abroad. in order to better serve woodworking machinery and support the woodworking industry. we have successively developed. designed and manufactured various type of portable and sliding table saws. the whole house customization straight and curved edge bander. trimming machine. CNC nesting machine. CNC wood router. CNC six-sided drilling and milling processing center. CNC side holes drilling machine. industrial automatic edge banding machine. hinge hole drilling machine. panel saws and other woodworking best-selling products. The products are exported to Europe. America. Southeast Asia. Kazakhstan. Vietnam. India. Brazil. Peru. and other regions and countries. In line with the company philosophy of customer first and pursuit of excellence. the company has brought together a team of technical experts specializing in machine tool design and manufacturing and an import and export service team with more than ten years of rich experience. with good professional quality. We can provide customers with good pre-sale and after-sale technical advice and import and export one-stop service.
FAQ
Q1: How to make an order?
A1:You can order online . Or Email us your details. and we will contact you immediately and help you
proceed with the orders.

Q2: Can you offer special discounts to the wholesaler or we make big quantity?
A2:Yes. we will give you best support according to your quantity.

Q3: What is your delivery time?
A3:Normally. we can finish one order at about 25-30days. but the exact time depends on different styles and different quantities you order.

Q4: Can you arrange the shipment by door to door?
A4:We can offer door to door service both by sea and by air. which can save your time and money. Also. we have cooperated forwarder in some countries and can arrange the customs clearance for you.

Q5: Do I have to assemble all items by myself or by my customer himself?
A5:Our packing will be two different ways according to different products. Some are used the KD packing (for some little spare parts). and others need to be assembled. But it is so easy to assemble with the user manual or video teaching.

Q6: What's your warranty?
A6:We normally will provide one years warranties. If the product is caused by factory mistakes. We will give you replacement for the spare parts. If it was damaged during the shipping or other reasons. we will provide the best solutions for you.

Q7:What payment do you accept?
A7:Normally we can provide TT. LC. PAYPAL. ESCROW. WESTERN UNION ect. Any other ideas. please contact us for better support.
