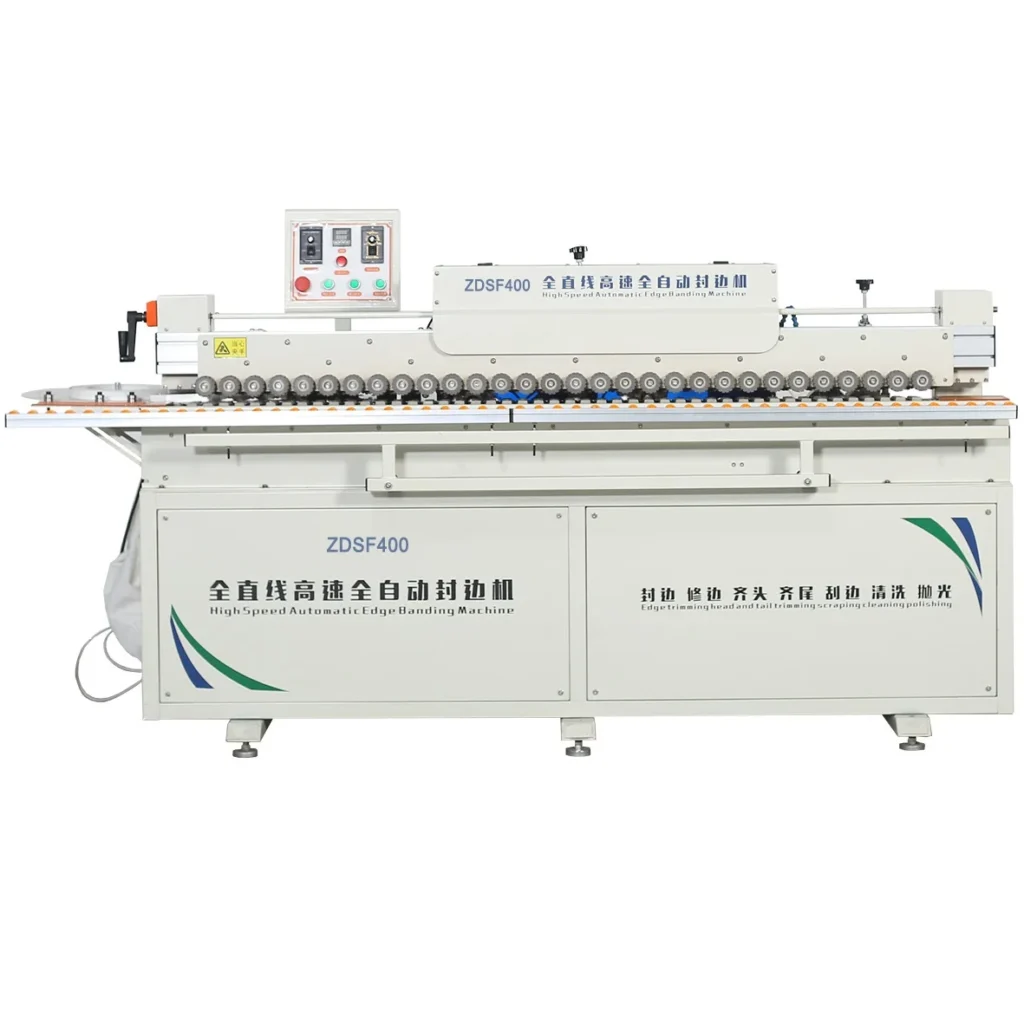

Furniture ZDSF400 High Speed Multi-Functional Wood Automatism Woodworking Edge Bander PVC Edge Banding Machine
Furniture ZDSF400 High Speed Multi-Functional Wood Automatism Woodworking Edge Bander PVC Edge Banding Machine
ISO 9001 CE Certified OEM / ODM Ready 5 National Patents Ruiqi
Wood Based Panels Machinery

Furniture ZDSF400 High Speed Multi-Functional Wood Automatism Woodworking Edge Bander PVC Edge Banding Machine

Products Disply ZDSF400 high speed full straight automatic edge banding machine FEATURES??/FONT> *High speed *Upper and lower flexible scraping *Full straight *end cutting *fine trimming *polishing This machine is suitable for straight edge banding of fiberboard. particle board and other plate workpieces. The machine adopts high-quality motors. imported electrical components. serialized products. diversified customer choices. […]

CE Certified
OEM / ODM
High Precision
100+ Countries
Request a Quote WhatsApp Now
woodmachinebc@aliyun.com Reply within 24 hours

Products Disply
ZDSF400 high speed full straight automatic edge banding machine


FEATURES??/FONT>
*High speed
*Upper and lower flexible scraping
*Full straight
*end cutting
*fine trimming
*polishing
This machine is suitable for straight edge banding of fiberboard. particle board and other plate workpieces. The machine adopts high-quality motors. imported electrical components. serialized products. diversified customer choices. and features high accuracy and high efficiency.
Product Paramenters
Model
ZDSF400 automatic high speed full straight edge banding machine
Function
Gluing. end cutting. Trimming. scraping. polishing. vacuuming
Edge type
Straight lines
Voltage
220v50hz
Rated power
3kw
Rated air pressure
0.4-0.6mpa
Strip thickness
1-3mm
Sheet thickness
10-55mm
Sheet width
??0mm
Feed plate
0-14m/min
Conveyer belt
0-14m/min
Glue capacity
1000ml
Heating power
800w (5-10min)
Trimming power
800w*2 (24000rpm)
Polishing power
180w*2 (5500rpm)
Suction power
550w
Overall size
240*70*120cm
Machine weight
370kg
Product details
Both large and small plates can be sealed. let you no longer worry about choosing configuration.
The frame is made of aluminum alloy. use large size and high specification.
Upper and lower flexible scraping + glue removing spray device.
800W * 2 air-cooled spindle motor. the trimming is full of strength. and the noise is smaller.
Using a large polishing wheel with a diameter of 150mm
Double bearing rail chrome-plated rod structure. Increase the smoothness of the chain block. reduce the friction of the chain block. and increase the service life.
High precision position display. digital display to adjust the plate is more convenient.
The equipment comes with a vacuum fan. the central dust collection effect reaches 95%
Integrated lift and pressure beam. adjust the height of the pressure beam without running around on both sides.
Adopt 1 + 2 pressing wheel combination.
2 sets of elastic pressing combination . the side-band is more firmly attached.
