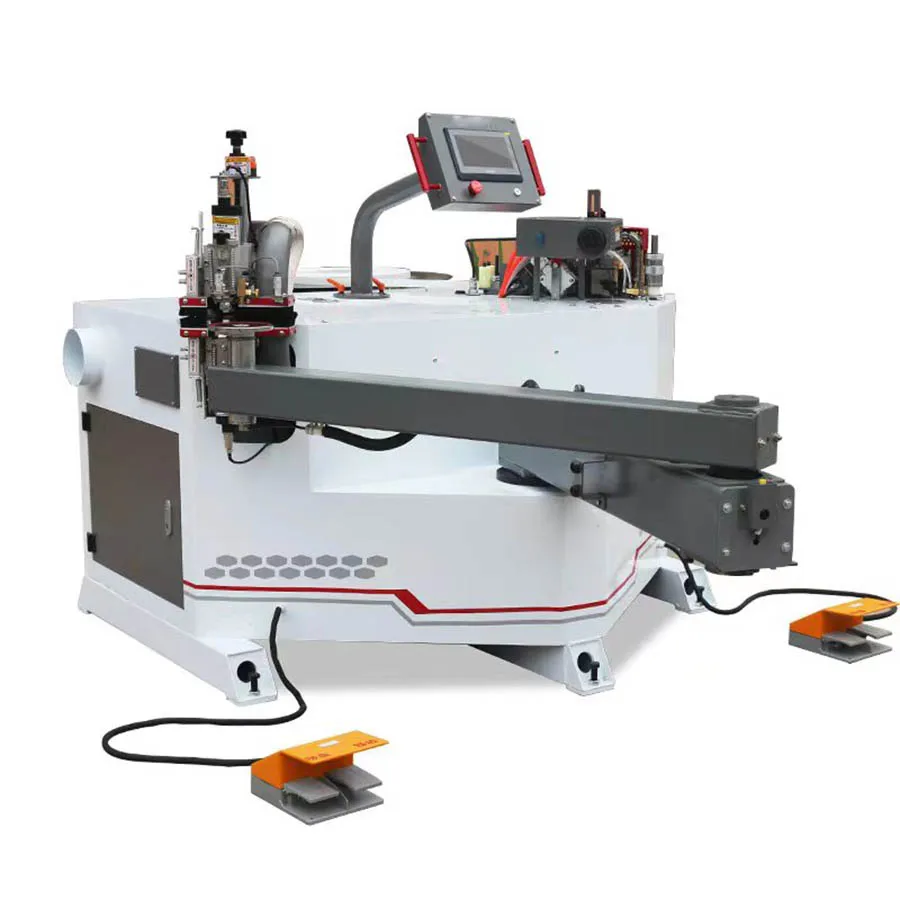

Folding Arm Curve Edgebander Edge Bander Woodworking Automatic Curve Edge Banding Machine With Trimming
Folding Arm Curve Edgebander Edge Bander Woodworking Automatic Curve Edge Banding Machine With Trimming
ISO 9001 CE Certified OEM / ODM Ready 5 National Patents Ruiqi
Wood Based Panels Machinery

Folding Arm Curve Edgebander Edge Bander Woodworking Automatic Curve Edge Banding Machine With Trimming

Products Disply Features of automatic curved edge banding and trimming machine:1. Curve plate automatic feeding2. Laser distance measurement. precise docking (docking error ±0.3mm). high precision. no need for manual cutting.3. Both PUR and EVA.4. Servo motor. fast action response. low noise.5. The feeding speed is 0-30cm/s. and the working efficiency is high.6. The machine has […]

CE Certified
OEM / ODM
High Precision
100+ Countries
Request a Quote WhatsApp Now
woodmachinebc@aliyun.com Reply within 24 hours

Products Disply
Features of automatic curved edge banding and trimming machine:1. Curve plate automatic feeding2. Laser distance measurement. precise docking (docking error ±0.3mm). high precision. no need for manual cutting.3. Both PUR and EVA.4. Servo motor. fast action response. low noise.5. The feeding speed is 0-30cm/s. and the working efficiency is high.6. The machine has 4 cleaning devices. which spray cleaning liquid automatically.7. The capacity of the glue pot is increased to 2600ml. and the glue pot has a heat preservation function.8. The touch screen can store 20 kinds of form data. greatly improving work efficiency.9. The 2L pressure accumulator gas storage tank is used to ensure the normal operation of all pneumatic components of the whole machine.10. 1 heating device makes the combination of strip and plate more firm.
Product Parameters
Name
automatic curved edge banding and trimming machine
Model
ZDS-700
voltage
380V/50HZ
power
6KW
Air pressure
0.6-0.8Mpa
Operating temperature of glue pot
110??210??/DIV>
Volume of air storage tank
2L
touch screen
industry IT7000
PLC
HIU-XP
frequency transformer
MD200 2.2KW
Laser displacement sensor
1030
edge banding motor
220V 400W servo motor
Trimming profiling motor
220V 60W Single-phase motor
Trimming high-speed motor
220V 400Hz 24000rpm
Thickness of strips
0.5-3mm
Width of strips
14-70mm
Length of stacking arm
2270mm
Edge banding speed
0-22m/min
Overall dimensions
1550*1440*1350mm
weight
451kg
Product details
Edge banding device
1 U-shaped groove limit
2 Adjustment switch
3 length counter
4 laser sensor
5 Glue Roller
6 Lamination pressure roller
7 Larger and thicker glue pot
8 Hot air device
9 Cutting knife assembly
Edge trimming device
1 Plate Thickness Adjustment
2 Trimming Adjustment
3 Trimming start-stop device
4 Edge scraper
5 Dust collection device
6 Curved Line Sensing Device
7 Glue removal device
High-quality LCD screen. can be rotated 50 degrees left and right. easy to operate.
Laser sensor. precise docking. fast speed. and strong anti-interference ability.
One-time molding. thickened glue pot. not easy to leak glue. and reduce the number of glue additions.
Vertical cutting knife. cutting neatly and powerfully. and the blade has a long service life.
Servo motor. small size. fast response. low noise. high efficiency.
The air pump is used for dust removal. and it can be set to clean regularly to prevent clogging.
The dust suction port is upgraded and enlarged. which can absorb dust quickly. save energy and protect the environment.
The air storage tank increases the service life of the air pump and maintains the normal air pressure required for work.
