Edgebander Edge Banding Machine Panel Gluing Machine Woodworking Automatic Machinery Steel Provided Wood Worktable Manual PVC
Edgebander Edge Banding Machine Panel Gluing Machine Woodworking Automatic Machinery Steel Provided Wood Worktable Manual PVC
ISO 9001 CE Certified OEM / ODM Ready 5 National Patents Ruiqi
Wood Based Panels Machinery

Edgebander Edge Banding Machine Panel Gluing Machine Woodworking Automatic Machinery Steel Provided Wood Worktable Manual PVC

Products Description Edgebander Edge Banding Machine Woodworking Automatic Machinery Steel Worktable Manual PVC Provided Wood Panel Gluing Machine Product Paramenters VOLTAGE :380V THREE-PHASE FOUR-WIREPRODUCT NUMBER: DW-3600GFEQUIPMENT SIZE:2200*650*1250mmTOTAL POWER:4.9KWEDGE BANDING TYPE: STRAIGHT EDGE BANDINGTOTAL WEIGHT: 320KGEDGE BAND HEIGHT :0-50MMEDGE BAND THICKNESS: 0.3-3MMMINIMUM LENGTH OF PLATE: 200MMEDGE BANDING POWER I SPEED: 160W0-14m/minTRANSMISSION POWER ISPEED: 180W0-14m/minTRIMMING POWERISPEED: 800W*2 […]

CE Certified
OEM / ODM
High Precision
100+ Countries
Request a Quote WhatsApp Now
woodmachinebc@aliyun.com Reply within 24 hours

Products Description

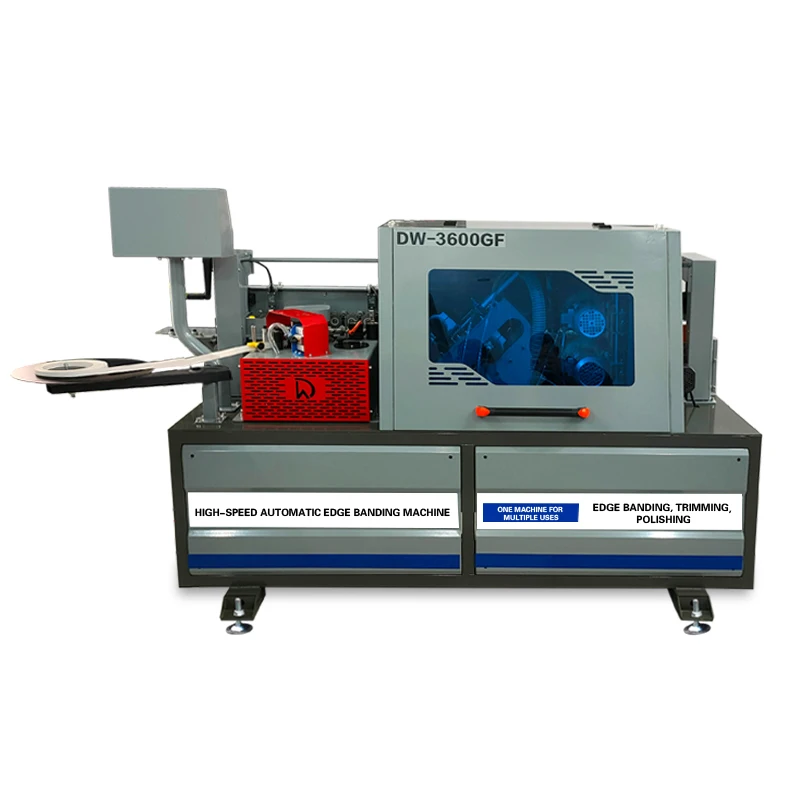

Edgebander Edge Banding Machine Woodworking Automatic Machinery Steel Worktable Manual PVC Provided Wood Panel Gluing Machine
Product Paramenters
VOLTAGE :380V THREE-PHASE FOUR-WIRE
PRODUCT NUMBER: DW-3600GF
EQUIPMENT SIZE:2200*650*1250mm
TOTAL POWER:4.9KW
EDGE BANDING TYPE: STRAIGHT EDGE BANDING
TOTAL WEIGHT: 320KG
EDGE BAND HEIGHT :0-50MM
EDGE BAND THICKNESS: 0.3-3MM
MINIMUM LENGTH OF PLATE: 200MM
EDGE BANDING POWER I SPEED: 160W0-14m/min
TRANSMISSION POWER ISPEED: 180W0-14m/min
TRIMMING POWERISPEED: 800W*2 24000r/min
POLISHING POWER /SPEED: 400W*2
EQUIPMENT AIR PRESSURE: 0.4-0.6mpa
STANDARD FUNCTIONS: GLUING.TRIMMING.TRIMMING.FRONT AND REAR .SCRAPING.POLISHING .VACUUMING
Product Details
Details Images
Why Choose Us
Our company is a source enterprise specializing in the production and exportof woodworking machinery products. The main products are edge bandingmachine. slotting machine. woodworking saw table and other auxiliary products.Our products are widely sold in China and exported to Europe. North America.Southeast Asia. Russia and other countries and regions. and are wellreceived by customers.
FAQ
Q1.Are you a trade company or a manufacturer ?We are manufacturer in Dezhou city. Shandong province of China.
We can offer competitive price of machine with high quality.Q2:Can I choose the Plug?Yes.we have EU.USA.AU.UK plug for your country useQ3:Is it OK to print my logo on the product?Yes.Please inform us formally before our production and confirm the design firstly for the mass production.Q4.I do not know Chinese.will the operation panel in English or French or other?Yes.all our machine are with Chinese and English.If you want only English or Spanish or other.we also can customize to youQ5:It is my first time to purchase goods from china.how do i do? Do not worry.Bei chen has 10 years export experience to all over the world.also has professional sales team.We have exported to Russia. Pakistan. Algeria. Vietnam. Peru and many other countries.Q6:How to pack the machine? We use wooden box to packge the machine to protect them to be safe.Q7.What to do if l have any other specifications for the current?lf you have any different requirements.just contact us and we will meet you.Q8.lf I need a sample for pretest. do you sale sample for this inquiry ?Yes. we can sale sample for pretest. lf you need this service. please contact us and we will giveyou a quotation.Q9.Can you produce the products according to my own drawings?Yes. we can do OEM according to your requirement
