Edge Banding Cutting Machine Automatic Edge Banding Machine ZDS 190
Edge Banding Cutting Machine Automatic Edge Banding Machine ZDS 190
ISO 9001 CE Certified OEM / ODM Ready 5 National Patents Ruiqi
Other Woodworking Machinery

Edge Banding Cutting Machine Automatic Edge Banding Machine ZDS 190

Products Disply Miniature Fully Automatic Curved and Straight Dual-purpose Edge Banding MachineThe use of square slide rail realizes profiling and trimming. and the use of imported brand 4-blade alloy arc knife to trim the plate effect arc shape. automatic end cutting. use two big diameter dust collectors. close fit. collecting effect can reach 99%. For […]

CE Certified
OEM / ODM
High Precision
100+ Countries
Request a Quote WhatsApp Now
woodmachinebc@aliyun.com Reply within 24 hours

Products Disply

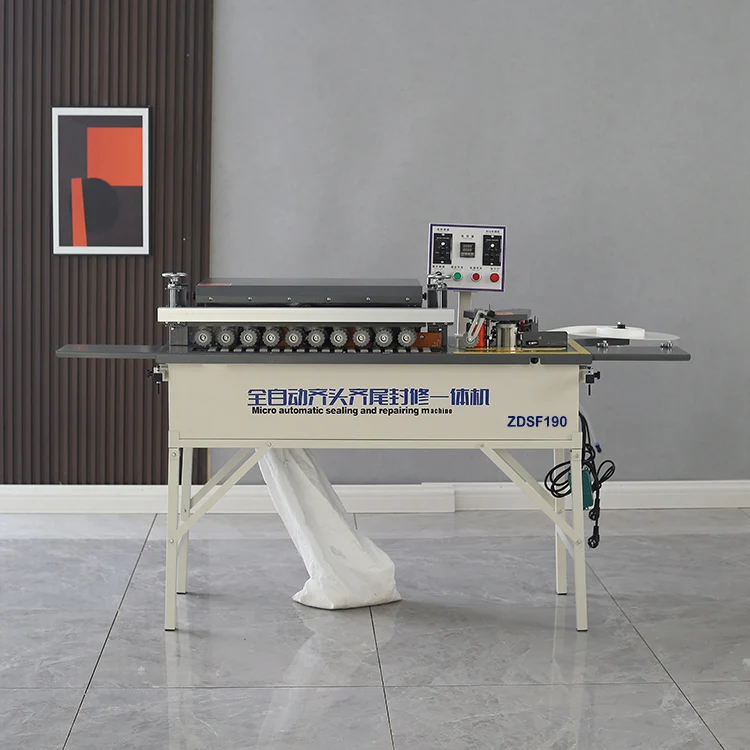

Miniature Fully Automatic Curved and Straight Dual-purpose Edge Banding Machine
The use of square slide rail realizes profiling and trimming. and the use of imported brand 4-blade alloy arc knife to trim the plate effect arc shape. automatic end cutting. use two big diameter dust collectors. close fit. collecting effect can reach 99%. For crawler transmission. we use steel rod slide rails. which is more stable in delivery. and the real materials can be seen!
Product Paramenters
Model
ZDSF190
Function
Automatic plate feeding
Automatically break the belt
Double-sided gluing
Upper and lower trimming and polishing
Curved and straight edgebanding
Large diameter surrounding vacuum
Edge type
Both curved and straight lines
Voltage
220v50hz
Rated power
4kw
Rated air pressure
0.4-0.6mpa
Suction
1200w
Belt power
25w
Transmission power
120w
Heating power
800w
Polishing power
180w*2
Trimming power
800w*2
Conveyer belt
0-14m/min
Feed plate
0-14m/min
Sheet thickness
10-50mm
Strip thickness
0.5-2.5mm
Glue capacity
1000ml
Overall size
1900*560*1300mm
Packing size
138*58*64cm
Weight
120kg
Product details
Control panel. multi-function button operation. save worry and effort.
The aluminum alloy pressure beam can be adjusted. and the plate conveying is more stable.
It can be used for straight edge banding. and can be used for curved edge banding after rotating 180 degrees. which is powerful.
Pneumatically controlled edge strip cutting device makes work easier.
Double-row rubber pressure wheels. automatic plate feeding. large-size plates can also be transported stably.
2 high-speed trimming motors. combined with a large-diameter vacuum device. trims the edges beautifully and cleanly.
Glue roller. adjustable glue volume.
Push-type limit switch. precise control.
Extended feed plate. more convenient to use.
4-edge arc-shaped alloy cutter head. the arc-shaped trimming is more beautiful.
Polishing device. cross polishing up and down.
Comes with a tray for edge banding.
Company Profile
ABOUT US
Zhengzhou The Right Time Import And Export Co.. Ltd. designated procurement channels for China Construction Overseas Projects. and is mainly involved in woodworking machinery. construction machinery. machinery accessories. engineering materials and other products. We invest and hold a portable woodworking company in Shandong province and a C N C machinery company in Lunjiao. Foshan City.Combining advanced woodworking production technology and experience at home and abroad. in order to better serve woodworking machinery and support the woodworking industry. we have successively developed. designed and manufactured various type of portable and sliding table saws. the whole house customization straight and curved edge bander. trimming machine. C N C nesting machine. C N C wood router. C N C six-sided drilling and milling processing center. C N C side holes drilling machine. industrial automatic edge banding machine. hinge hole drilling machine. panel saws and other woodworking best-selling products. The products are exported to Europe. America. Southeast Asia. Kazakhstan. Vietnam. India. Brazil. Peru. and other regions and countries.In line with the company philosophy of customer first and pursuit of excellence. the company has brought together a team of technical experts specializing in machine tool design and manufacturing and an import and export service team with more than ten years of rich experience. with good professional quality. We can provide customers with good pre-sale and after-sale technical advice and import and export one-stop service.
Package And Shipping
FAQ
Q1: How to make an order?
A1:You can order online . Or Email us your details. and we will contact you immediately and help you proceed with the orders.

Q2: Can you offer special discounts to the wholesaler or we make big quantity?
A2:Yes. we will give you best support according to your quantity.

Q3: What is your delivery time?
A3:Normally. we can finish one order at about 25-30days. but the exact time depends on different styles and different quantities you order.

Q4: Can you arrange the shipment by door to door?
A4:We can offer door to door service both by sea and by air. which can save your time and money. Also. we have cooperated forwarder in some countries and can arrange the customs clearance for you.

Q5: Do I have to assemble all items by myself or by my customer himself?
A5:Our packing will be two different ways according to different products. Some are used the KD packing (for some little spare parts). and others need to be assembled. But it is so easy to assemble with the user manual or video teaching.

Q6: What's your warranty?
A6:We normally will provide one years warranties. If the product is caused by factory mistakes. We will give you replacement for the spare parts. If it was damaged during the shipping or other reasons. we will provide the best solutions for you.

Q7:What payment do you accept?
A7:Normally we can provide TT. LC. PAYPAL. ESCROW. WESTERN UNION ect. Any other ideas. please contact us for better support.
