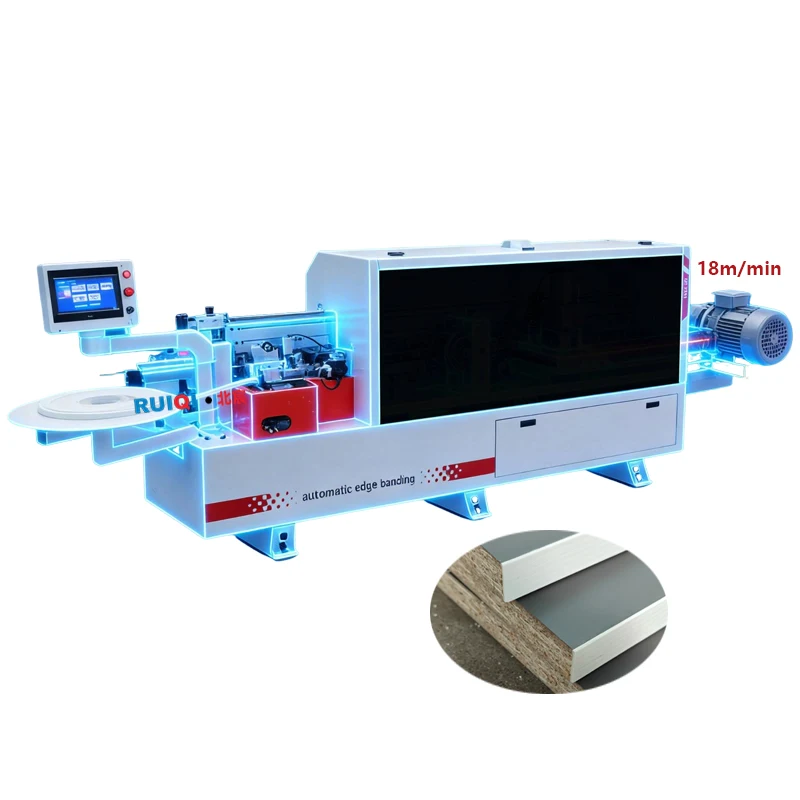

DW330 High Speed Edge Banding Machine Double Row Press Wheels Aluminum Beam Stable Pressing Continuous Panel Feed Speed 18m/min
DW330 High Speed Edge Banding Machine Double Row Press Wheels Aluminum Beam Stable Pressing Continuous Panel Feed Speed 18m/min
ISO 9001 CE Certified OEM / ODM Ready 5 National Patents Ruiqi
Edge banding machine

DW330 High Speed Edge Banding Machine Double Row Press Wheels Aluminum Beam Stable Pressing Continuous Panel Feed Speed 18m/min

Products Description New Upgrade DW330 Fully Automatic Edge Banding Machine Pre-Milling Arc Trimming Enlarged Glue Pot Capacity 1500W Large Transmission MotorFully automatic edge banding machine can automatically complete processes such as board conveying. gluing. edge banding.trimming.polishing. etc. It is efficient and stable. and can adapt to various materials of edge banding strips and boards.providing high-quality […]

CE Certified
OEM / ODM
High Precision
100+ Countries
Request a Quote WhatsApp Now
woodmachinebc@aliyun.com Reply within 24 hours

Products Description
New Upgrade DW330 Fully Automatic Edge Banding Machine Pre-Milling Arc Trimming Enlarged Glue Pot Capacity 1500W Large Transmission Motor

Fully automatic edge banding machine can automatically complete processes such as board conveying. gluing. edge banding.
trimming.polishing. etc. It is efficient and stable. and can adapt to various materials of edge banding strips and boards.
providing high-quality and efficient edge banding solutions for industries such as furniture manufacturing.

Product Paramenters
DW-330 high speed edge banding machine parameters??/DIV>
Model
DW-330
Conveying Motor??/DIV>
1.5KW
Trimming Motor??/DIV>
0.55KW*2
Glue feeding Motor??/DIV>
0.37KW*2
Narrowest sealing plate width??/DIV>
120mm
Feeding speed??/DIV>
18M/min
Outline dimension??/DIV>
350*71*122cm
Package size??/DIV>
360*72*130CM 3.37CBM
End-to-end motor??/DIV>
0.37KW*2
Polishing Motor??/DIV>
0.37KW*2
Machining minimum size??/DIV>
Lengh 200 width 100 thickness 9mm
Machining maximum plate thickness??/DIV>
Height 50mm
Heating rod??/DIV>
380V 300W*4
Net Weight??/DIV>
750KG
Weight??/DIV>
800KG
Product Details
7-inch PLC control panel. compatible with multiple languages. and a push-button control box is also available as an option.
Digital display hand crank for manual adjustment of beam height
Double-row pressure rollers. aluminum profile pressure beams. stable pressure plates. capable of sealing narrowest plates up to 10cm wide.
With an enlarged cylinder and thickened cutter. it can cut 3mm thick edge banding tape.
Large-capacity glue pot. capable of continuously sealing large boards without glue. with stable work efficiency.
Large gluing shaft. single-sided gluing of the board. uniform gluing. no glue breakage on large boards. and no need for separate adjustment when using thin edge banding tape.
The glue volume adjustment device is simple and easy to operate.
Head-to-tail device
Contour trimming. alloy trimming knife. smooth and beautiful trimming.
Curved scraper with a contouring device is used to trim curved edges.
Enhanced polishing. industrial polishing motor. resulting in a smooth. residue-free polished surface.
1500W transmission motor with a 1:40 speed ratio enables a fast sealing speed of up to 18m/min.
Edge Banding Effect
Why Choose Us
Certifications
Company Profile
Our company is a source enterprise specializing in the production and exportof woodworking machinery products. The main products are edge bandingmachine. slotting machine. woodworking saw table and other auxiliary products.Our products are widely sold in China and exported to Europe. North America.Southeast Asia. Russia and other countries and regions. and are wellreceived by customers.
FAQ
Q1.Are you a trade company or a manufacturer ?We are manufacturer in Dezhou city. Shandong province of China.
We can offer competitive price of machine with high quality.Q2:Can I choose the Plug?Yes.we have EU.USA.AU.UK plug for your country useQ3:Is it OK to print my logo on the product?Yes.Please inform us formally before our production and confirm the design firstly for the mass production.Q4.I do not know Chinese.will the operation panel in English or French or other?Yes.all our machine are with Chinese and English.If you want only English or Spanish or other.we also can customize to youQ5:It is my first time to purchase goods from china.how do i do? Do not worry.Bei chen has 10 years export experience to all over the world.also has professional sales team.We have exported to Russia. Pakistan. Algeria. Vietnam. Peru and many other countries.Q6:How to pack the machine? We use wooden box to packge the machine to protect them to be safe.Q7.What to do if l have any other specifications for the current?lf you have any different requirements.just contact us and we will meet you.Q8.lf I need a sample for pretest. do you sale sample for this inquiry ?Yes. we can sale sample for pretest. lf you need this service. please contact us and we will giveyou a quotation.Q9.Can you produce the products according to my own drawings?Yes. we can do OEM according to your requirement
