Chinese Factory Band Edge Machine Edge Bonding Machine Edge Gilding and Polishing Machine
Chinese Factory Band Edge Machine Edge Bonding Machine Edge Gilding and Polishing Machine
ISO 9001 CE Certified OEM / ODM Ready 5 National Patents Ruiqi
Wood Based Panels Machinery

Chinese Factory Band Edge Machine Edge Bonding Machine Edge Gilding and Polishing Machine

Products Description Chinese Factory Band Edge Machine Edge Bonding Machine Edge Gilding And Polishing MachineDW802 Automatic Edge banding machine with gluing.trimming.end cutting and buffing for straight only.Wood bander machine is suitable for edge sealing of MDF. particleboard. solid wood board. ecological board. plywood. etc. This machine is stable and reliable. durable. price concessions. especially suitable […]

CE Certified
OEM / ODM
High Precision
100+ Countries
Request a Quote WhatsApp Now
woodmachinebc@aliyun.com Reply within 24 hours

Products Description
Chinese Factory Band Edge Machine Edge Bonding Machine Edge Gilding And Polishing Machine

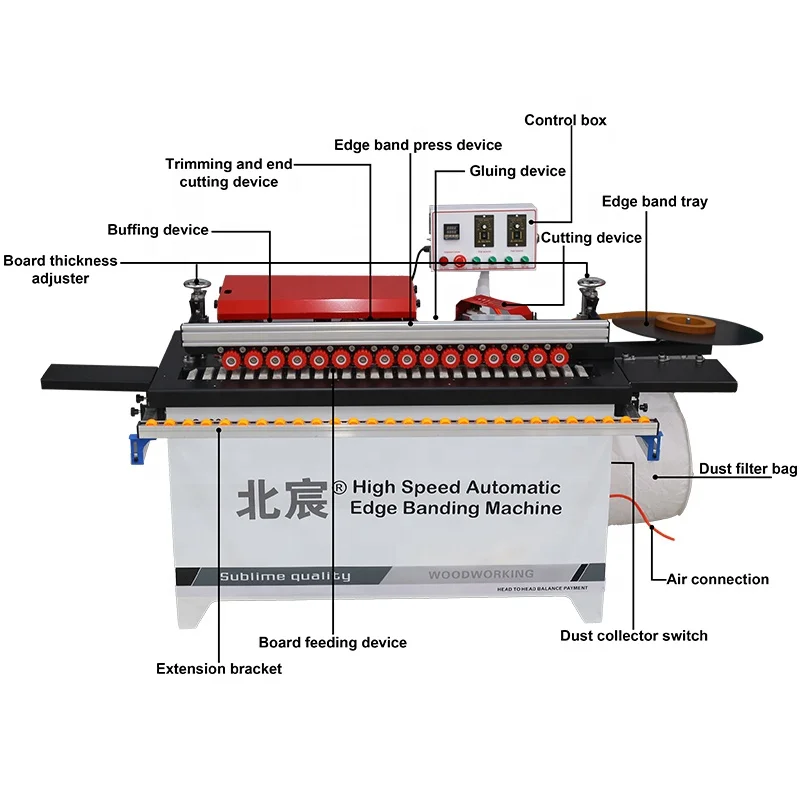

DW802 Automatic Edge banding machine with gluing.trimming.end cutting and buffing for straight only.

Wood bander machine is suitable for edge sealing of MDF. particleboard. solid wood board. ecological board. plywood. etc. This machine is stable and reliable. durable. price concessions. especially suitable for home decoration production.

Automatic edge bander machine is clean and tidy with the design of integrated pressure beam and the conveyor belt of silica gel material.
The plate is stable and firm and not easy to scratch the plate. The design of large capacity glue pot makes it unnecessary to put glue frequently. save time and effort for carpenters. and can continuously seal multiple plates. convenient operation
Standard features:Edge banding. trimming. polishing. automatic head and tail. with vacuum
Product Paramenters
Model
DW802
Total power
4200W
Standard features
Edge banding. trimming. polishing. automatic head and tail. with vacuum
voltage
220V/380V/customization
Minimum length of sheet
25CM
Minimum width of sheet
10CM
Edge banding height
0-50MM
Edge banding thickness
0.3-3MM
Edge power/speed
140W
Air source pressure
0.4-0.8Mpa
Transmission power/speed
140W
Glue pot capacity
4000ml
Trimming power/speed
800W*2
Vacuum power
1200W
Polishing power/speed
180W*2
Product Size
130*60*95CM
product weight
135KG
Package Size
Full wooden box 134*64*98CM Wooden box cover 130*60*96CM
Why Choose Us
Certifications
Company Profile
Our company is a source enterprise specializing in the production and exportof woodworking machinery products. The main products are edge bandingmachine. slotting machine. woodworking saw table and other auxiliary products.Our products are widely sold in China and exported to Europe. North America.Southeast Asia. Russia and other countries and regions. and are wellreceived by customers.
FAQ
Q1.Are you a trade company or a manufacturer ?We are manufacturer in Dezhou city. Shandong province of China.
We can offer competitive price of machine with high quality.Q2:Can I choose the Plug?Yes.we have EU.USA.AU.UK plug for your country useQ3:Is it OK to print my logo on the product?Yes.Please inform us formally before our production and confirm the design firstly for the mass production.Q4.I do not know Chinese.will the operation panel in English or French or other?Yes.all our machine are with Chinese and English.If you want only English or Spanish or other.we also can customize to youQ5:It is my first time to purchase goods from china.how do i do? Do not worry.Bei chen has 10 years export experience to all over the world.also has professional sales team.We have exported to Russia. Pakistan. Algeria. Vietnam. Peru and many other countries.Q6:How to pack the machine? We use wooden box to packge the machine to protect them to be safe.Q7.What to do if l have any other specifications for the current?lf you have any different requirements.just contact us and we will meet you.Q8.lf I need a sample for pretest. do you sale sample for this inquiry ?Yes. we can sale sample for pretest. lf you need this service. please contact us and we will giveyou a quotation.Q9.Can you produce the products according to my own drawings?Yes. we can do OEM according to your requirement

20+
Years Experience
100+
Countries Exported
800+
Factory Staff
$10M
Annual Turnover
