China High Quality Oblique Straight Board Edge Banding Machine 45 Degree Edge Manufacturing Machines for Small Business
China High Quality Oblique Straight Board Edge Banding Machine 45 Degree Edge Manufacturing Machines for Small Business
ISO 9001 CE Certified OEM / ODM Ready 5 National Patents Ruiqi
Wood Based Panels Machinery

China High Quality Oblique Straight Board Edge Banding Machine 45 Degree Edge Manufacturing Machines for Small Business

ZDS-3600 Full Auto Bevel-Straight Edge Banding Machine Use for Bevel-straight Edge.achieve perfect bevel-straight banding effect at one time. Function:Function:*Milling Shape*Edge strip slotting*Hot air assisted. secondary heating*Head and tail cutting*Fine trimming*Scraping*Buffing Product Parameters Edge speed0-12m/minEdge banding sheet thickness18-45mmVoltage380vPower8.9kwWorking pressure0.5-0.7MpaGlue pot capacity4000mlBevel Angle30°-90°Edge motor0.12kwGlue pot heating2kwOven lamp heating2kw*2Slotting motor65wTrimming motor2.2kw*2Milling motor2.2kwPolishing Motor0.37kw*2Size3320*650*1180mmWeight450kgFunctionStraight edge– Beveled straight edge– Pressing/gluing–Pre-milling–Preheating– […]

CE Certified
OEM / ODM
High Precision
100+ Countries
Request a Quote WhatsApp Now
woodmachinebc@aliyun.com Reply within 24 hours

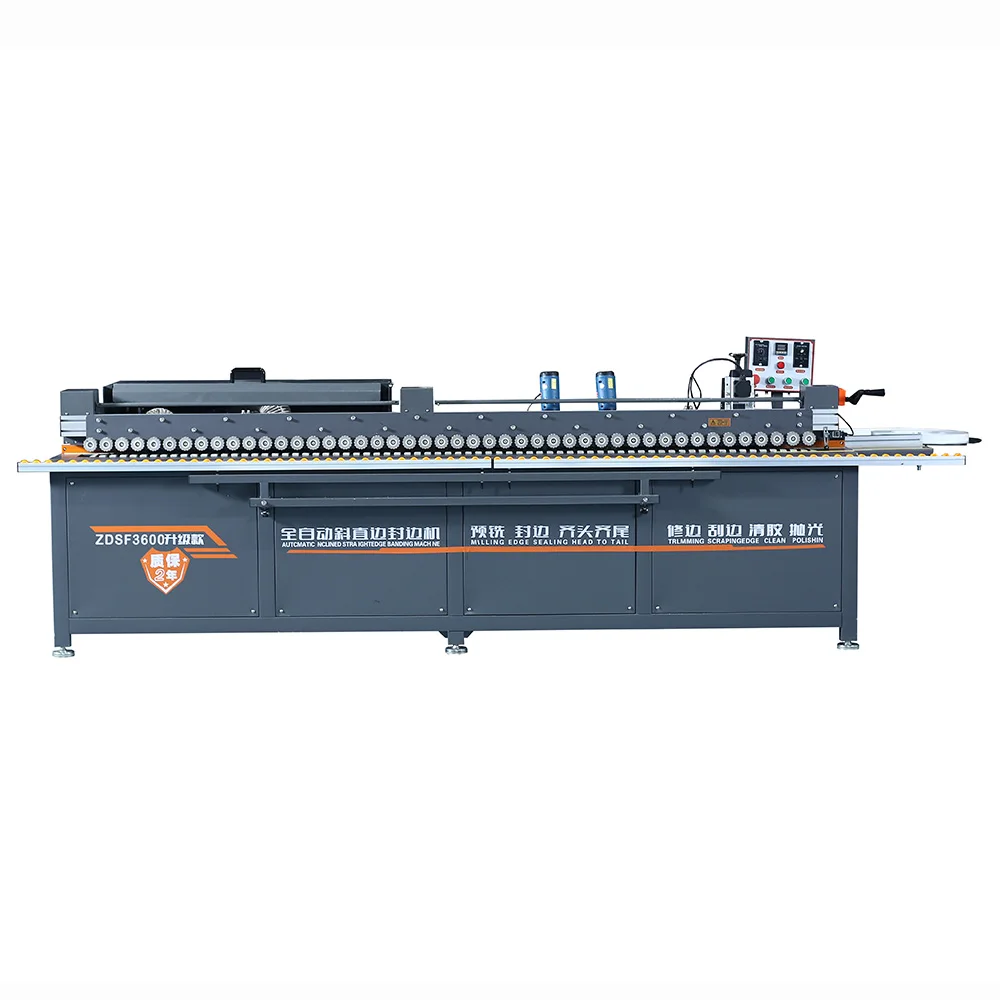

ZDS-3600 Full Auto Bevel-Straight Edge Banding Machine
Use for Bevel-straight Edge.achieve perfect bevel-straight banding effect at one time.


Function:
Function:
*Milling Shape
*Edge strip slotting
*Hot air assisted. secondary heating
*Head and tail cutting
*Fine trimming
*Scraping
*Buffing
Product Parameters
Edge speed
0-12m/min
Edge banding sheet thickness
18-45mm
Voltage
380v
Power
8.9kw
Working pressure
0.5-0.7Mpa
Glue pot capacity
4000ml
Bevel Angle
30°-90°
Edge motor
0.12kw
Glue pot heating
2kw
Oven lamp heating
2kw*2
Slotting motor
65w
Trimming motor
2.2kw*2
Milling motor
2.2kw
Polishing Motor
0.37kw*2
Size
3320*650*1180mm
Weight
450kg
Function
Straight edge– Beveled straight edge– Pressing/gluing–Pre-milling–Preheating– edge trimming–edge scraping–clear glue–polishing
Product details
PLC control. panel operation. easy to learn.
One-piece aluminum alloy lift and pressure beam. stable and durable.
Pressure beam height adjustment device. digital display. suitable for plates of different thickness.
Beveled edge milling motor. powerful power. PLC control. easy tool change.
Large-capacity glue pot assembly reduces the number of glue additions.
The edge banding is pre-grooved for better results.
Chrome-plated pressure roller. easy to adjust the pressure. can achieve different angles of edge banding.
Two high-speed trimming motors. matched with 4-edged alloy cutter heads. form arc edges.
Spray glue removal device to remove excess glue spilled during glue application.
Large-diameter suction tube. better dust collection effect.
Dual motors polish up and down. and the finished product has better effect.
Company Profile
ABOUT US
Zhengzhou The Right Time Import And Export Co.. Ltd. designated procurement channels for China Construction Overseas Projects. and is mainly involved in woodworking machinery. construction machinery. machinery accessories. engineering materials and other products. We invest and hold a portable woodworking company in Shandong province and a C N C machinery company in Lunjiao. Foshan City.Combining advanced woodworking production technology and experience at home and abroad. in order to better serve woodworking machinery and support the woodworking industry. we have successively developed. designed and manufactured various type of portable and sliding table saws. the whole house customization straight and curved edge bander. trimming machine. C N C nesting machine. C N C wood router. C N C six-sided drilling and milling processing center. C N C side holes drilling machine. industrial automatic edge banding machine. hinge hole drilling machine. panel saws and other woodworking best-selling products. The products are exported to Europe. America. Southeast Asia. Kazakhstan. Vietnam. India. Brazil. Peru. and other regions and countries.In line with the company philosophy of customer first and pursuit of excellence. the company has brought together a team of technical experts specializing in machine tool design and manufacturing and an import and export service team with more than ten years of rich experience. with good professional quality. We can provide customers with good pre-sale and after-sale technical advice and import and export one-stop service.
Package And Shipping
FAQ
Q1: How to make an order?
A1:You can order online . Or Email us your details. and we will contact you immediately and help you proceed with the orders.

Q2: Can you offer special discounts to the wholesaler or we make big quantity?
A2:Yes. we will give you best support according to your quantity.

Q3: What is your delivery time?
A3:Normally. we can finish one order at about 25-30days. but the exact time depends on different styles and different quantities you order.

Q4: Can you arrange the shipment by door to door?
A4:We can offer door to door service both by sea and by air. which can save your time and money. Also. we have cooperated forwarder in some countries and can arrange the customs clearance for you.

Q5: Do I have to assemble all items by myself or by my customer himself?
A5:Our packing will be two different ways according to different products. Some are used the KD packing (for some little spare parts). and others need to be assembled. But it is so easy to assemble with the user manual or video teaching.

Q6: What's your warranty?
A6:We normally will provide one years warranties. If the product is caused by factory mistakes. We will give you replacement for the spare parts. If it was damaged during the shipping or other reasons. we will provide the best solutions for you.

Q7:What payment do you accept?
A7:Normally we can provide TT. LC. PAYPAL. ESCROW. WESTERN UNION ect. Any other ideas. please contact us for better support.
